RS485 Communication 24VDC Brushless Motor Intelligent Boom Barrier Gate With 180 Degree Folding Arm
Price:
Negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
RS485 Communication Traffic Light Interface 24VDC Brushless Motor Intelligent Boom Barrier Gate
Thank you for choosing our advanced brushless barrier gate system. This product incorporates the latest mold design technology, precision die-casting manufacturing, and brushless motor control technology for superior performance and reliability.
Key Features & Functions
- Adjustable operation speed (1.5 to 6 seconds)
- Quick left/right arm direction interchange capability
- Barrier gate up & down signal relay switch output
- R&G traffic light relay switch signal output
- External loop detector signal anti-smashing interface
- Infrared sensor signal anti-smashing interface
- Count mode interface for traffic management
- Arm swing-out function to prevent damage from vehicle impact
- High-sensitivity auto reverse function with adjustable intensity
- Parking system integration interface
Technical Specifications
| Working Temperature (Motor) | -35℃ to +85℃ |
| Rated Voltage | DC 24V |
| Running Speed | 1.5 to 8 seconds |
| Rated Current | 8.58A |
| Rated Power | 140W |
| No-load Speed | 1850 rpm |
| Rated Speed | 1400 rpm |
| Output Power | 56.8 N.m |
| Relative Humidity | ≤90% |
| Remote Control Distance | ≤100M (open area) |
| IP Rating | IP44 |
| Maximum Arm Length | 6 Meters |
Direction Interchange Procedure
The barrier direction can be easily interchanged following these 6 steps:
- Step 1: Remove M8X20 inner hexagonal screw and take out machine core
- Step 2: Move electrical supporting plate from left to right side
- Step 3: Remove M10*30 fixed screw on boom tray
- Step 4: Use M14*150 screw to pull out boom tray head
- Step 5: Install boom tray head from original left to right side (or vice versa)
- Step 6: Return machine core to case and secure with M8*20 hexagonal screw
No additional adjustments required after direction interchange.
Package Contents
- 1 Vehicle Barrier Gate Unit
- 1 Arm Boom (1m to 6m, customizable)
- 1 Control Panel (built inside)
- 2 Remote Controllers
- 1 Push Button
- 1 User Manual
Ordering Process
- Inquiry: Provide detailed requirements for product recommendation
- Quotation: Official quotation with clear specifications
- Invoice: Issued upon quotation confirmation
- Payment: Full payment for samples, 30% deposit for bulk production
- Production: 15-25 working days for bulk orders
- Delivery: By sea, air, or courier with packaging documentation
Service & Warranty
Comprehensive service support for long-term reliability:
- One year free servicing (arm excluded)
- Lifetime charged servicing available
- Technical support provided
Charged Servicing Conditions
- Damage from incorrect installation
- Damage from improper voltage application
- Surface damage from improper installation or use
- Damage from natural disasters
- Overdue warranty claims
- Services outside promised scope

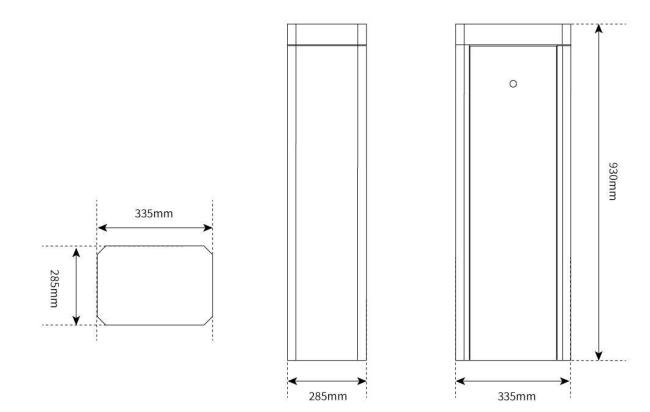

Housing dimension
