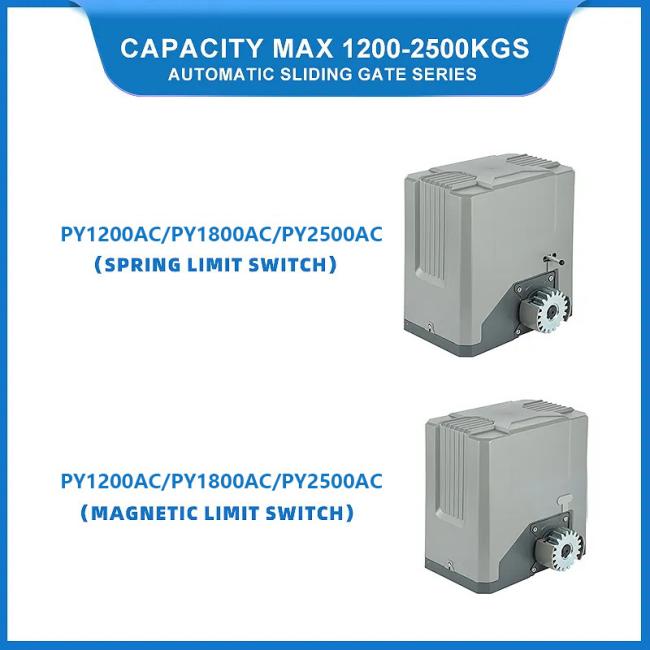

Waterproof Corrosion-resistant Heavy Duty 2500KG Sliding Gate Opener with Auto Reverse Safety
NEW PY series gate opener designed for commercial and industrial use, handling weights up to 2500 kg and operating distances up to 12 meters.
- Oil lubrication system with generous appearance and heavy-duty construction
- Compact structure providing cost-effective solutions
- Built-in control board or separate control box options
- Keypad / single button interface
- Alarm lamp, photo beam & safety beam interface
- User-selectable auto-close function
- Optional spring limit switch and magnetic limit switch
- Manual key release design for emergency purposes
- Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing (Smart version)
- Complete installation accessories included
| Type | PY1200AC | PY1800AC | PY2500AC |
|---|---|---|---|
| Power Supply | 220V/50Hz; 110V/60Hz | ||
| Max. Gate Weight | 1200KG | 1800Kg | 2500KG |
| Motor Power | 450W | 600W | 800W |
| Gate Moving Speed | 11-13 m/min | ||
| Limit Switch | Spring (mechanical) / magnetic | ||
| Recording of up Remotes | 20 pcs / 44 pcs | ||
| Decoding / Frequency | Rolling code / 433.92MHz | ||
| Work Duty | S2 20min | ||
| Noise | ≤58dB | ||
| Work Temperature | -20°C~70°C | ||
- Metal Gear Rack & Nylon Gear Rack (order rack length according to your gate length)
- Photo beam sensor
- Keypad systems
- Push button
- Warning light
- Solar panel
- Backup batteries
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales. Our main product lines include: Pedestrian access control turnstiles, Vehicle barrier gates, hydraulic road bollards and blockers, and Automatic gate operators.
Our products are widely used in places wherever access control is needed, such as government offices, schools, hospitals, airports, terminals, tourist attractions, and parking lots. Company products have been exported to more than 100 countries, including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya.
Stable function and excellent performance are our product R&D priorities. Offering the most affordable price to customers is our product design concept. Our goal is to establish win-win situations and long-term cooperation relationships with all our customers and partners.
