High Speed 118W Solar Panel Boom Barrier Gate with IP54 Protection and 24V DC Brushless Motor
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
High Speed 118W Solar Panels Rechargeable Backup Battery System Car Boom Barrier Gate IP54 Protection
Sinomatic supplies barrier gate openers compatible with solar power systems for parking control, vehicle access points, and secured perimeters. These DC-powered operators are designed for off-grid and low-voltage environments where trenching for AC power is impractical or cost-prohibitive.
Key Applications
- Remote & Off-Grid Parking: Controls vehicle entry in remote nature reserves, mountain access roads, or rural checkpoints where electrical grid access is unavailable or too expensive to trench.
- Construction & Mining Sites: Secures temporary work sites and mining perimeters to prevent unauthorized entry and material theft.
- Temporary Events & Roadworks: Provides mobile, easily relocated traffic management (Stop/Go barriers) for sporting events, festivals, and highway maintenance closures.
- Residential & Commercial Parks: Secures private property, office car parks, and loading zones without disrupting landscaping or requiring complex, long-distance power cables.
- Ecological & Conservation Zones: Allows eco-friendly vehicle monitoring and access logging in protected environments without introducing intrusive electrical infrastructure.
Product Advantages
- Zero Grid Reliance: Operates entirely independently of local electrical grids, offering protection against power outages.
- Cost Savings: Avoids expensive cabling, trenching work, and ongoing monthly electricity usage costs.
- Battery Back-up: Features integrated, deep-cycle batteries that store solar energy to ensure reliable operation during the night or prolonged cloudy periods.

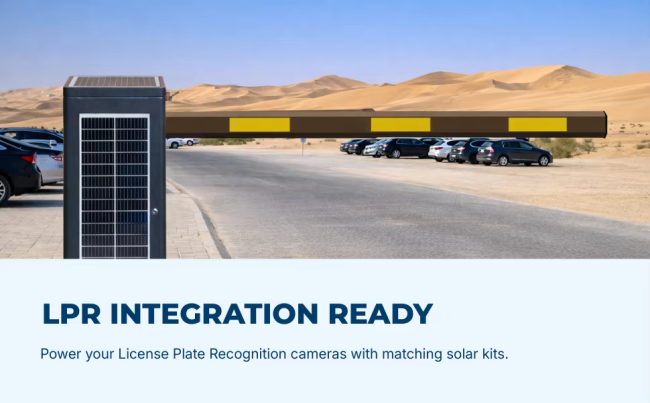

- Seamless Integration: Often paired with automated access controls such as license plate recognition (LPR/ALPR), RFID card readers, keypads, or wireless remote controls.
Main Functions and Features
- Completely solar-powered barrier gate with zero electricity bills and no need for grid connection.
- True off-grid operation perfect for remote parking lots, parks and eco-friendly projects.
- High-efficiency 118W solar panel system keeps the gate running even on cloudy days.
- Massive 156Ah battery delivers up to 12,000 lifting cycles on a single full charge.
- Energy-saving 24V brushless motor provides powerful performance with very low power use.
- Fast and smooth arm lifting in just 1.5 seconds for quick vehicle access control.
- Weatherproof IP54 design withstands harsh outdoor conditions all year round.
- Compact and easy-to-install solar barrier gate saves time and installation costs dramatically.
- Ultra-quiet brushless motor operation creates a calm and professional entrance experience.
- Maintenance-free solar system designed for long-term reliable performance in remote areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Carbon Steel |
| Chassis Dimensions (W*D*H) | 340mm * 310mm * 1050mm |
| Protection Level | IP54 |
| Motor Type | 24V DC Brushless Motor |
| Operating Voltage | DC 24V |
| Operating Temperature | -30°C ~ +80°C |
| Housing Material | Powder-coated steel |
| Solar Panel Total Power | 118W |
| Motor Power | 100W |
| Lifting Speed | 1.5s / 3.0s (Selectable based on arm length) |
| Remote Control Range | ≤ 50 meters (open area) |
