Wireless Infrared Photoelectric Sensor with 180° Rotation No Blind Spots and 15M Detect Range for Automatic Door Gate Opener
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
Wireless Infrared Photoelectric Sensor with 180° Rotation and No Blind Spots
This advanced wireless infrared photoelectric sensor features 180° rotation capability and eliminates blind spots, making it ideal for automatic door and gate opener applications.
Key Features
- Operating Voltage: AC: 9V-24V, DC: 12V-30V
- 180° Lens Rotation: -90° to 0° to +90° for versatile installation angles
- No Blind Spots: Full-range obstacle monitoring coverage
- Maximum Operating Distance: 9 meters (domestic reflector), 13 meters (imported reflector)
- Infrared Reflection Principle: Integrated transmitter and receiver for easy installation
- Two Reflective Lenses: Domestic and imported options available
Applications
- Lifting doors and revolving doors
- Sliding doors and wall security protection
- Window and balcony security systems
- Warehouse security and access control
- Parking lots and outdoor security sites
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | AC: 9V~24V DC: 12V~24V |
| Working Current | 1) <35mA@12VDC 2) <19mA@24VDC |
| Detection Distance | 1) ≥15m (imported reflector) 2) ≥10m (domestic reflector) |
| Reaction Time | ≥ 30mS |
| Ambient Light Intensity | Max. 5000lux |
| Infrared Light Specification | 1) Wave length: 740nm 2) Emission Type: Visible Red light |
| Output Port Loading | 1) AC 0.3A/120VAC 2) DC 0.8A/30VDC |
| Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Product Size (L×W×H) | 112.7×47×42.9mm |
| Reflector Dimensions | D82 × H8.3mm |
| Product Weight | 151.5g (including sensor, reflector, mounting screw accessories, and rain cover) |

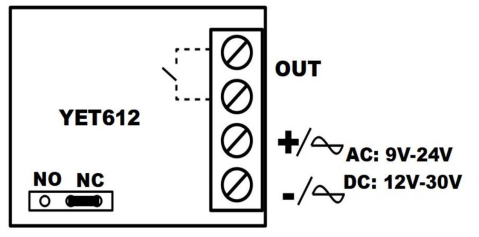

Product Electrical Interface
Installation and Precautions
- Do not exceed the maximum sensing distance during installation and commissioning.
- Install the reflector at a suitable height, with its reflective surface facing the sensor. Initial setup: Secure the sensor first, align the reflector, then move the reflector from near to far to the desired position.
- Adjust the sensor horizontally and vertically to align with the reflector's center.
- The infrared beam diverges with distance, so adjust the reflector up/down and left/right to find the optimal position. Ensure the infrared beam hits the reflector.
- Do not mount the unit on shaking or vibrating surfaces, as this may cause false triggering.
