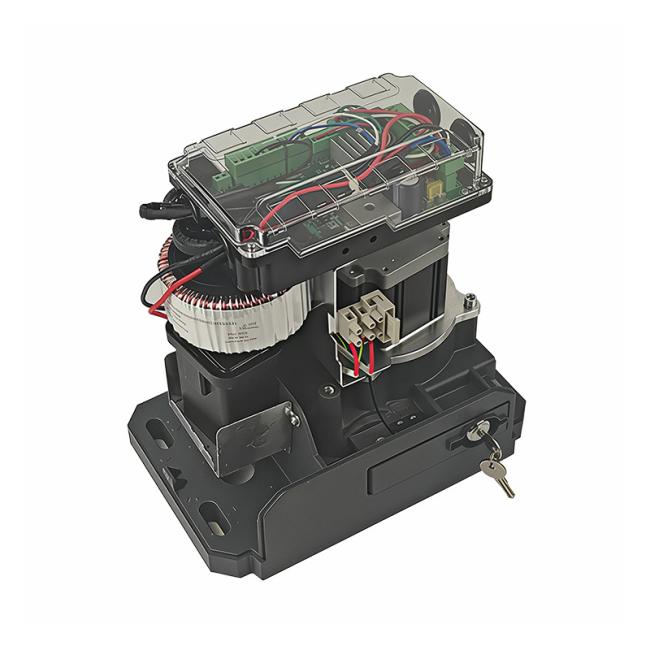

1000kg S1 Continuous Working Duty Cycle DC Brushless Sliding Gate Opener For GT1000DCW
Product Highlights
DC 24V Brushless Motor, rated power 180W.
Mechanical or magnetic limit switch.
Built-in Lithium battery (24V/2.5Ah).
LCD screen.
Slow start & slow stop.
100% work duty, the motor can operate continuously without overheat
Feature
1. Mechanical or magnetic limit switch.
2. DC brushless motor can work continuously.Built-in a transformer,can be connected to 24V solar system or 110V/220V power supply.
3. Can be opened by manual release key when the power is off.
4. External security device and access control system can be connected.
Function
1. Obstacle sensibility,slow speed distance and gate moving speed setting.
2. Automatic close with waiting time adjustable.
3. Single and dual gate mode can be set.
4. WIFI function optional.
|
Model |
GT1000DCW |
|
Power Supply |
220V/50Hz; 110V/60Hz |
|
Motor Power |
180W |
|
Travel Speed |
22m/min |
|
Output Torque |
160N·m |
|
Max. Loading Weight |
1000kg |
|
Noise |
≤56dB |
|
Limit switch |
Mechanical / Magnetic |
|
Remote Frequency |
433.92 MHz |
|
Working Temperature |
-20°C ~ +70°C |
|
Lithium Battery |
24V/2.5Ah |
