Infrared Detection RFID Control Drop Arm Turnstile with 30 Person Per Minute Flow Rate for Metro Stations

Price Negotiable

Price: negotiable

MOQ: Sample order accepted

Delivery Time: 5-10 working days after payment received

Brand: SINOMATIC

Product Description

Infrared Detection RFID Control Metro Station Entrance Exit Arm Drop Turnstile

Advanced access control solution featuring infrared detection and RFID technology for secure entry and exit management in high-traffic environments.

Product Overview

Alarm Function: Automatically triggers alarm and locks arms when forced entry is detected

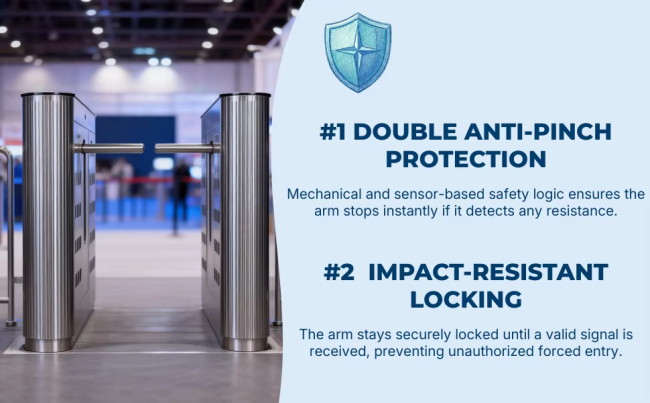

Anti-pinch Protection: Mechanical and infrared induction systems prevent injury with automatic motor shutdown upon obstruction detection

Applications

Ideal for metro stations, subways, bus terminals, factories, office buildings, hotels, schools, libraries, supermarkets, and institutions requiring intelligent access management.

Key Features

Fault detection and alarm functions for easy maintenance

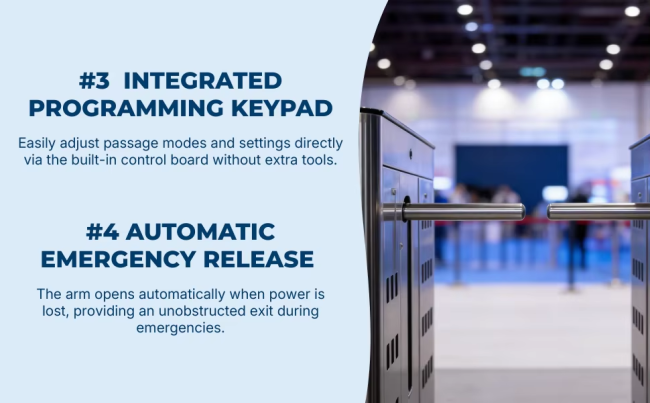

Programmable operation via built-in keyboard on main board
Mechanical anti-pinch function with automatic reset capability
Anti-breakthrough security with automatic locking
Automatic reset function (default 5-second timeout)
Configurable as normally open or normally closed
Compatible with IC/ID card readers, barcode scanners, fingerprint systems
Single-direction or bi-directional operation
Fire safety compliant - auto-opens when power fails
Comprehensive alarm system for illegal and reverse intrusion

Technical Specifications

Parameter	Specification
Power Supply	AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage	Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage	DC 24V (brush motor)
Maximum Flow Rate	25 to 30 persons per minute
Flap Opening/Closing Time	1 second
Reset Time When Power On	3 seconds
Working Temperature	-20°C to 60°C
