Infrared Photocells Swing Barrier Gate with 60cm Arm and 24VDC Motor for Secure Access Control
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
3-7 working days after payment received
Brand:
SINOMATIC
Product Description

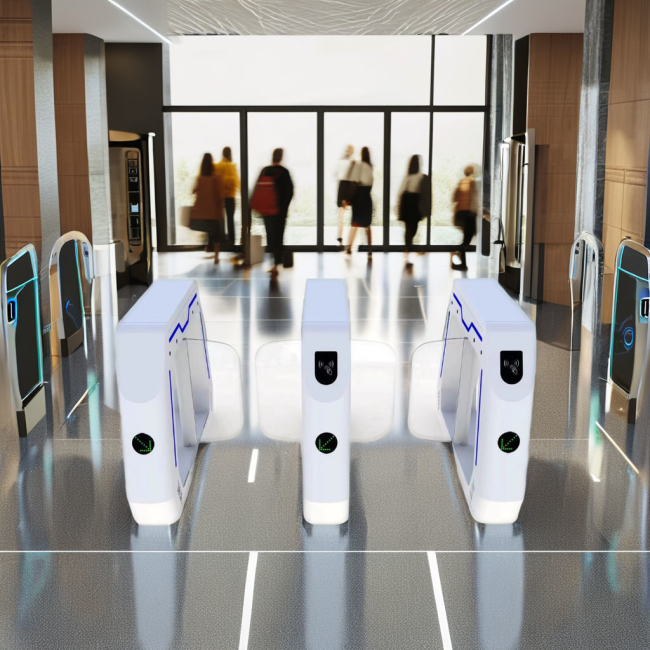

Infrared Photocells Swing Barrier Gate 90cm Arm 24VDC Motor For Entrance
Optical Security Access Control Swing Barrier Gate
Sinomatic Intelligent swing barrier is a premium access control solution featuring precise craftsmanship, comprehensive functions, and high reliability. Designed for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other high-level venues.
Features and Functions
- Compact electro-mechanical design with unique drive and self-lock mechanism
- Automatic malfunction detection system
- Input interface for dry contact and switch signal connection
- Adjustable auto-delay closing
- Infrared photocells for safety access control
- Alarm system for unauthorized access and reverse passenger flow
- Anti-reversing passing protection
- Auto closing when power is applied
- Auto open and free access during power failure
- Adjustable access directions
- Emergency interface available
- Traffic light indicating passenger access status
Technical Specifications
| Housing dimension | 1200×220×990mm |
| Arm length | Maximum 90cm |
| Motor material | Steel and aluminum alloy |
| Voltage | 220V±15% or 110V±15% |
| Motor type | Brush 24VDC motor |
| Input interface | Dry contact |
| Opening time | 1 second |
| Protection grade | IP44 |
| Working temperature | -25°C to +50°C |
