304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
3-7 working days after payment received
Brand:
SINOMATIC
Product Description

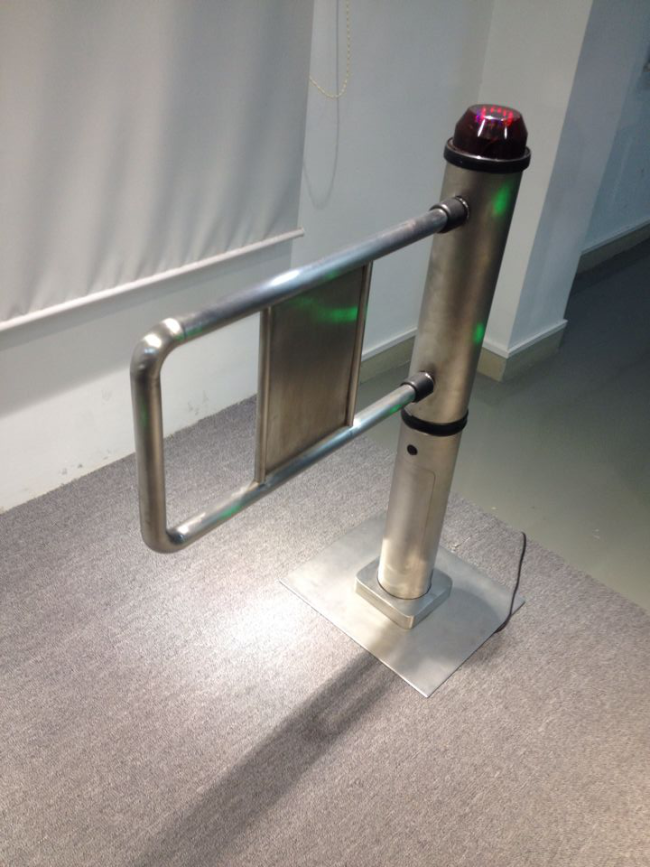

Tripod Access Swing Barrier Gate Stainless Steel IP44 900mm Arm
Stainless Steel IP44 Swing Gate Turnstile Passenger Tripod Access System
Pedestrian Swing Gate Overview
Our intelligent swing barrier represents a premium product line featuring precise craftsmanship, comprehensive functionality, and high reliability. Designed for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other sophisticated venues, this system integrates seamlessly with modern access control management for intelligent security solutions.
Key Features
- Compact electro-mechanical design with unique drive and self-lock mechanism
- Automatic malfunction detection system
- Input interface for dry contact and switch signal connection
- Adjustable auto-delay closing functionality
- Infrared photocells for enhanced safety access
- Alarm system for unauthorized access and reverse flow detection
- Anti-reversing passing protection
- Automatic closing when powered on
- Automatic opening and free access during power outages
- Adjustable access directions
- Emergency interface availability
- Traffic light indicators for passenger access guidance
Technical Specifications
| Housing dimension | φ114.3*990mm |
| Arm length | 500-900mm |
| Motor material | Steel and aluminum alloy |
| Voltage | 220V±15% or 110V±15% |
| Motor type | Brush 24V DC motor |
| Input interface | Dry contact |
| Opening time | 1 second |
| Protection grade | IP44 |
| Working temperature | -25°C to +50°C |
