High Speed 600mm Passage Width Flap Barrier Gate with 30 Persons/Min Throughput and 304 Stainless Steel Construction
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
3-10 working days after payment received
Brand:
SINOMATIC
Product Description

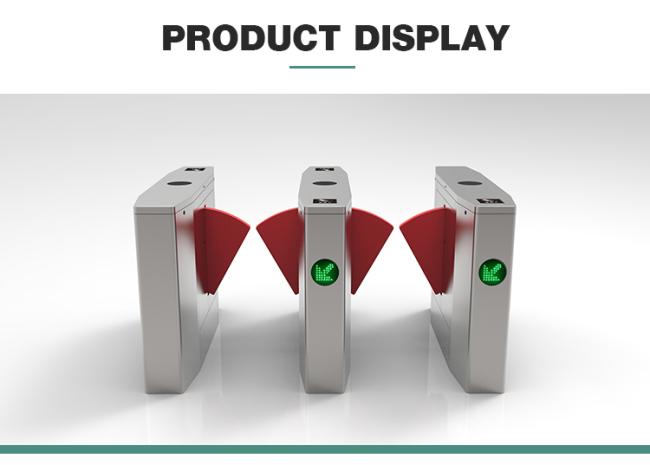

High Speed Half Height Controlled Access Gates
Remote control security subway turnstile with advanced access control features and robust construction.
Technical Specifications
| Power Supply | AC220V±10V, 50Hz / AC110V±10V, 60Hz |
| Power Consumption | 100W/24V |
| Operating Temperature | -20°C to +60°C |
| Humidity | < 95%, without concretion |
| Passage Width | 600mm |
| Passing Speed | 30 persons/min (normal open), 25 persons/min (normal close) |
| Arm Open/Close Time | 1 second |
| Input Interface | +12V electrical signal or impulse signal with width >100ms, drive current >10mA |
| Flap Material | Acrylic or PU foam |
| Housing Material | 304 stainless steel |
| Dimensions | 1200×300×980mm (Arm Length: 270mm) |
| Weight | 80kg |
| Working Environment | Indoors or outdoors with shed |
Advanced Functions & Features
- Self-diagnostic problem detection system
- Multiple operating modes: Bi-directional card reading, one-direction card reading with opposite free passage, or single-direction photocell controlled operation
- Automatic arm opening during power failure with automatic reset upon power restoration
- Adjustable arm closing delay (1-60 seconds) after valid card read
- Auto-reposition function with configurable timeout for passage completion
- Audible alarm for unauthorized passage attempts
- Anti-rush protection with secure arm locking
- Dual anti-pinch safety: Photocell detection and mechanical protection
- Standard electrical interfaces for integration with various access control systems
- Integrated passenger counting with LED display
- Directional indicators for user guidance
Automatic Wing Gate Specifications
| Product Type | Automatic Speed Gate |
| Case Material | 304 Stainless Steel |
| Dimensions | L1200 × W300 × H1000mm |
| Maximum Passage Width | 600mm |
| Power Supply | AC220V±10%, 50Hz / AC110V±10%, 60Hz |
| Motor Voltage | DC24V |
| MCBF | 5 million cycles |
| Transit Speed | 30 persons/minute |
| Operating Environment | Indoor/Outdoor (with shelter) |
| Operating Temperature | -20°C to +60°C |
