AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security

Price Negotiable

Price: negotiable

MOQ: Sample order accepted

Delivery Time: 5-10 working days after payment received

Brand: SINOMATIC

Product Description

AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint

Hospital Security Traffic Pedestrian Swing Gate

This traffic swing barrier gate is primarily installed at high-traffic entrances and exits of shopping malls and supermarkets. Designed to operate in normally closed mode, the gate retracts into the pedestal and allows free exit via sensors while restricting unauthorized entry.

Key Features

Customizable gate length to fit specific site requirements
Bi-directional opening capability for both entry and exit
Seamless integration with access control systems
Dry contact trigger opening with programmable auto-close timer
Dual dry contact control (NC for open, NO for close) for precise access timing

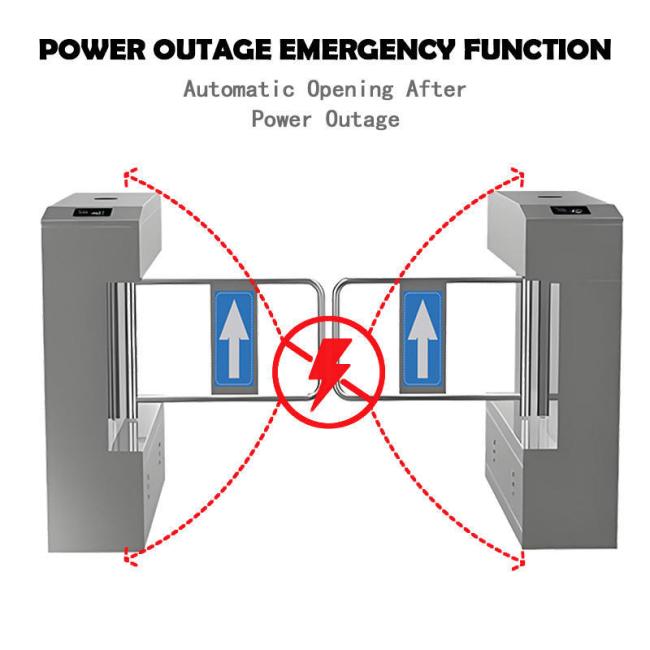

Automatic gate opening during power failure with auto-close upon power restoration
Built-in safety clutch disengages motor drive when obstructed, minimizing impact force
Optional safety IR beam for obstacle detection and automatic gate reversal
Synchronized opening when multiple gates are installed in the same passage
Self-locking motor mechanism at open and close positions

Technical Specifications

Product Type	Fingerprint Device Swing Turnstile
Body Material	304 Stainless Steel (316 Optional)
Dimensions	L1200 x W280 x H980mm
Arm Length	530mm (Standard), ≤750mm
Weight	80kg
Motor Power	DC24V
Voltage	AC220V±10%
Frequency	50Hz
MCBF	5 Million Cycles
Transit Speed	30 Persons/Minute
Operating Environment	Indoor/Outdoor (Shelter)
Operating Temperature	-20°C to 60°C
Operating Humidity	≤95% No Condensation

Swing Gate with Fingerprint Device

Application Locations

Industrial Zones, Administrative Buildings, Recreation Centers, Amusement Parks, Financial Institutions, Government Agencies, Airports, Bus and Railway Stations, Offices
