Full Automatic Barrier Gate with 0.6 Second Opening Time, 10 Million Times MTBF, and IP65 Protection for Car Park and Toll Gate Systems
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
Wind Power Full Automatic Barrier Gate
Advanced car park barrier gate system designed for toll gates and parking facilities with exceptional reliability and energy efficiency.
Advanced Features
- Excellent waterproof and dust-proof performance with IP65 protection rating
- Superior weather resistance operating reliably from -40℃ to 80℃ with -grade quality
- Compatible with DC24V battery systems and can be combined with solar or wind power for locations lacking AC power
- Fast opening and closing speeds to increase vehicle passing rate and reduce traffic intervals
- Automatic boom rise during power outages to comply with fire safety requirements
- Anti-collision boom design for enhanced safety
- Long-term maintenance-free operation significantly reducing maintenance costs
- Highest level of security to prevent vehicle or pedestrian accidents
- Smooth operation without mechanical impact or shock absorption for maximum reliability and service life
- Adjustable boom rising angle (60°, 70°, 80°, 90°)
- Easy direction exchange capability
- Free debugging during production and installation to minimize maintenance and labor costs

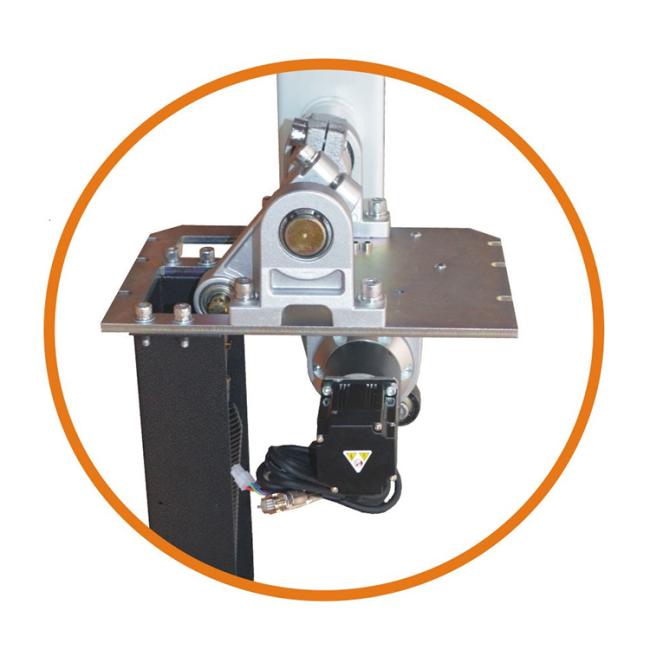

- Advanced servo control system for high-speed and precise operation
- Low-power servo motor for true maintenance-free operation, high durability, and energy savings
- Zero speed (0 rpm) constant torque output to prevent external force damage
- No position sensor required with consistent stop accuracy and fully synchronized pairing
- No anti-shock rubber needed with impact-free, bounce-free operation and free adjustment
- No clutch device - boom automatically rises during power outages
- No key-way design eliminating hidden safety hazards
- No brake design avoiding wear-related reliability issues
- Highly reliable industrial-grade components exceeding industry quality standards
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Boom Length | 2.5 meters |
| Opening Time | 0.6 second |
| Power | Max 150W |
| Housing Material | Powder-coated steel/Aluminum |
| Net Weight (no boom) | 43KG |
| MTBF | 10 million times |
| Working Temperature | -40°C to +50°C |
| Protection Grade | IP55 |
| Driving Unit | Servo motor |
| Board Voltage | 24V DC |
| Warranty | 2 years |
| Application | Indoor/Outdoor |
