Industrial-Grade Automatic Barrier Gate with 10 Million Times MTBF DC24V Power Supply and IP65 Protection
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
Solar Energy Electromechanical Industrial-Grade Car Parking Barriers Arm Operator
Maintenance-free UPS battery backed-up electromechanical parking barrier arm operator designed for millions of maintenance-free cycles in access and revenue control applications.
Product Overview
This barrier gate series represents an extremely reliable, continuous duty, electromechanical parking barrier arm operator with UPS battery backup. Engineered for demanding access and revenue control applications, it delivers millions of maintenance-free operational cycles.
Advanced Features
- Excellent waterproof and dust-proof performance with IP65 protection rating
- Superior weather resistance operating reliably from -40℃ to 80℃ with -grade quality
- Compatible with DC24V battery systems and integrates with solar/wind power for locations without AC power
- Fast open/close speeds increase vehicle throughput and reduce traffic intervals
- No position sensor required with consistent stopping accuracy and synchronized pairing operation
- Impact-free operation without anti-shock rubber, bouncing, or manual adjustments
- Automatic boom rise during power outages (manual lift capability for emergency situations)
- Key-way free design eliminates gap-related safety hazards
- Brake-free operation removes concerns about brake pad wear and reliability issues
- Fire safety compliant with automatic boom rise during power loss
- Anti-collision boom design for enhanced safety
- Long-term maintenance-free operation significantly reduces maintenance costs
- Highest security level prevents vehicle or personal injury incidents
- Zero mechanical impact or shock absorption during movement ensures maximum reliability and service life
- Simplified production and installation debugging reduces maintenance and labor expenses
- Advanced servo control system delivers high-speed precision operation
- Low-power servo motor provides true maintenance-free, high-durability energy-efficient performance
- Zero speed constant torque output prevents external force leverage on the boom
- Industrial-grade components exceed industry quality standards
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Boom Length | 2.5 meters |
| Opening Time | 0.6 seconds |
| Power Consumption | Maximum 150W |
| Housing Material | Powder-coated Steel / Aluminum |
| Net Weight (without boom) | 43 KG |
| MTBF (Mean Time Between Failures) | 10 million cycles |
| Working Temperature Range | -40°C to +50°C |
| Protection Grade | IP55 |
| Driving Unit | Servo Motor |
| Board Voltage | 24V DC |
| Warranty Period | 2 Years |
| Application Environment | Indoor / Outdoor |

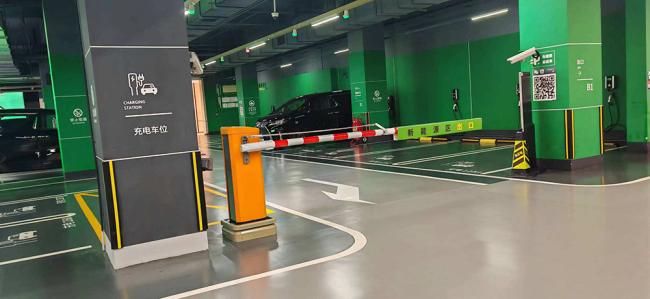

Application Examples
