DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
Price:
Negotiable
MOQ:
Sample order accepted
Delivery Time:
5~10 days
Brand:
SINOMATIC
Product Description
Airport Turnstile Entry Systems Security Checkpoint Pedestrian Control DC Motor
Full Height Automatic Smart DC Brushless Motor Glass Sliding Turnstile Access Control System
Intelligent speed gates are engineered to prevent unauthorized access through climbing or bypass attempts, providing sophisticated entrance and exit control management. Constructed with international-grade stainless steel profiles, these systems feature precision craftsmanship, comprehensive functionality, elegant design, corrosion resistance, and exceptional durability to withstand external impacts. The equipment integrates mechanical, electronic, and microprocessor-controlled systems, compatible with electronic ticketing, access control, attendance tracking, parking management, facial recognition, anti-static systems, and various biometric identification technologies.

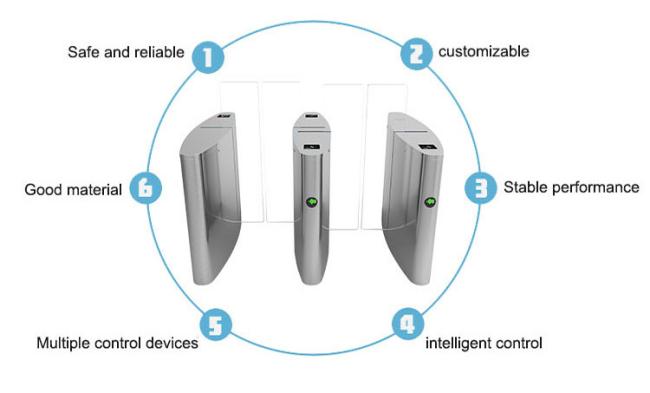

Key Features
- Configurable normally open/normally closed operation to meet specific management requirements
- Compatible with RF card readers, barcode scanners, biometric readers, and push button controls
- Infrared photocell detection with alarm activation for unauthorized entry or tailgating attempts
- Anti-strike protection mechanism to safeguard pedestrians
- Expandable integration with automatic identification, access control, traffic management, attendance, and fare collection systems
- Automatic reset function with adjustable passage timing
- International interface standards for seamless integration with other read/write devices
- Remote supervision computer management capability
- Gate open during power failure with automatic return to normal closed mode upon power restoration
- Optional memory function for continuous passage of multiple pedestrians (up to 16)
- Optional reverse passing alarm for unauthorized direction changes
- Available in single or bi-directional configurations
- Direction display indicators for passenger guidance
- Card-reading with or without memory function options
- Software-controlled population management
- Stable operation with minimal noise generation
Production Dimensions
Technical Specifications
| Specification | Details |
|---|---|
| Housing Size | 1400mm long × 300mm wide × 1000mm high |
| Working Direction | Single or bi-directional |
| Housing Material | 304 Stainless Steel (1.5mm thickness) |
| Power Supply | AC200±10%V / 50±10%Hz |
| Driving Motor | 24V DC |
| Input Interface | Relay switch signal, 12V level signal, or pulse width >100ms 12V pulse signal |
| LED Indicators | 2 units |
| Card Reader Windows | 2 units |
| Passage Speed | 40 persons/min (normal open), 25-30 persons/min (normal close) |
| Gate Operation Timing | 1-2 seconds |
| Power On Initialization | 3 seconds |
| Working Environment | Indoor, Outdoor (with protective covering) |
| Temperature Range | -20℃ to 60℃ |
| Relative Humidity | ≤ 90% (non-condensing) |
