27cm Flap Barrier Gate with Infrared Sensor and Voice Prompt for Pedestrian Access Control
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
Pedestrian 27cm Flap Barrier Turnstile with Infrared Sensor Anti-Trap and Voice Prompt
Advanced pedestrian management infrared sensor anti-trap voice prompt flap gate barrier designed for metro stations and high-security access control applications.
Related Products: wing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestrian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrance turnstile, entrance gate, turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate
Flap Barrier Gate Introduction
Sinomatic flap barrier gate integrates mechanical, electronic, and microprocessor technologies with various identification systems. Compatible with IC card, ID card, barcode, fingerprint readers and other identification devices. Features reliable safety mechanisms, alarm systems, and direction indicators to achieve intelligent access control and management.

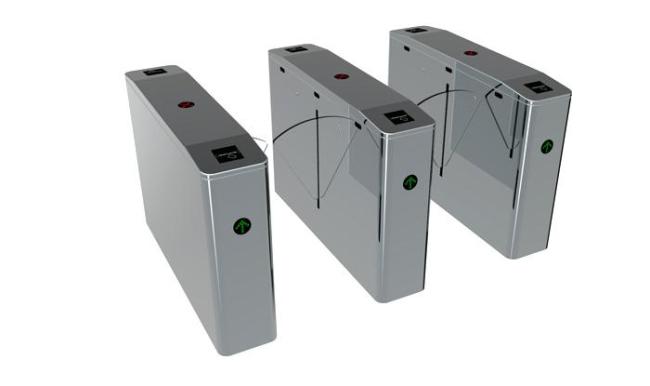

Product Images
Applications
- Station, wharf, tourist attraction, and factory entrance/exit management channels
- Recount channel management for exhibitions, swimming pools, and similar venues
- Time attendance, access control, and consumption management for enterprises and commercial buildings
- Special channel management systems for high-security areas
Key Features
- Fault self-test and alarm prompt functions for easy maintenance
- Programmable operating states via built-in push-pull controls
- Anti-pinch and anti-collision mechanical structure with automatic motor stop
- Illegal intrusion, trailing alarm, and reverse intrusion protection
- Anti-shock function with automatic arm locking
- Adjustable synchronous telescopic arms (for double pendulum models)
- Automatic reset function with adjustable timing (1-60 seconds)
- Infrared sensor reset and anti-trap functionality (5 pairs of infrared sensors)
- Compatible with access control, consumer, electronic ticket, biometric systems, and electrostatic testers
- One-way or two-way control with infrared sensing channels
- Voice prompt functionality for user guidance
- Remote control and management via computer interface
Technical Specifications
| Power Supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Motor Voltage | DC 24V |
| Access Device Input Voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Direction | Can be set as single or double |
| Maximum Flow Rate | 25 to 30 persons per minute |
| Flap Opening/Closing Time | 1 second |
| Flap Length | 270mm |
| Flap Material | Acrylic or foam |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 0-95% RH |
| Application | Indoor/outdoor with tent |

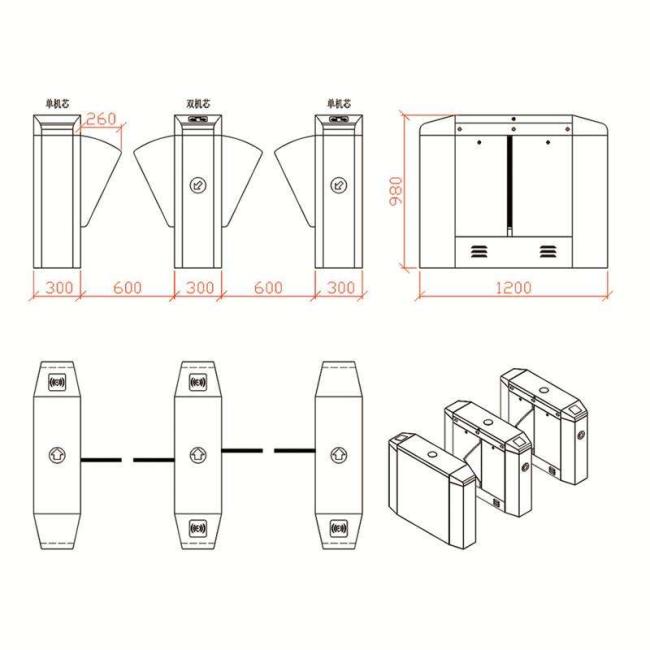

Product Dimensions
Installation Case Studies
Why Choose Our Flap Barrier Gates
- More than 20 years of OEM/ODM experience in access control turnstiles and barriers
- Prompt delivery with standard model inventory
- Custom OEM/ODM orders to meet specific client requirements
- Trial orders accepted for product testing before bulk purchases
- Comprehensive online technical support for business partners
- Multiple transportation options: sea shipment, air cargo, or express delivery
- Factory visits welcome on working days
