90 Degree Rotating Bi-directional Full Height Turnstile with Biometric Fingerprint RFID Card Reader and SS304 Frame
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
90 Degree Rotating Bi-Directional Turnstile with Biometric Fingerprint RFID Card Reader
Advanced full-height turnstile gate system featuring biometric fingerprint and RFID card reader technology for secure access control in industrial and commercial environments.
Product Overview
This full-height turnstile is engineered with robust mechanical construction to provide unsupervised access control for offices and buildings. The system enables intelligent pedestrian management while preventing unauthorized access to restricted areas through its impenetrable design.
Authorized passage requires presentation of a valid card to the access control system. Upon verification, the turnstile unlocks and permits passage in the requested direction. The system is compatible with push button controls, fingerprint scanners, and facial recognition technology.
Constructed from tailored stainless steel, this turnstile offers elegant aesthetics, exceptional durability, and superior anti-oxidation properties.
Technical Specifications
| Lane Width | 550-600mm (default) |
| IP Rating | IP54 |
| Pass Speed | 30 persons/min |
| Power Supply | AC220V/110V, 50/60Hz |
| Drive Mode | Motor free |
| Max Power Consumption | 200W |
| Unlock Time | 0.2S |
| Humidity | ≤90% coagulation free |
| Noise Level | ≤50dB |
| Service Life | 5,000,000 cycles |
| Working Environment | -20°C to +60°C |
| Gross Weight | 350KGS |

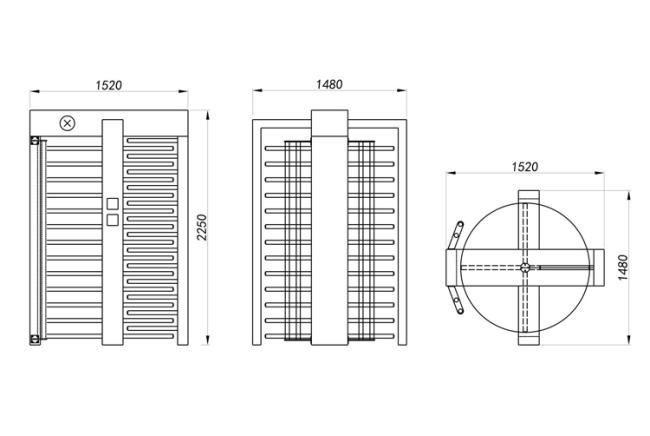

Product Dimensions
Key Features & Functions
- Low noise mechanism core for high cost-performance operation
- High operating efficiency with less than 1 second open & close time
- Self-checking and alarm warning for maintenance alerts
- Automatic resetting cancels authorized pass if passenger delays
- Anti-following technology prevents illegal passing
- Anti-clamp safety feature stops wings during external blocks
- Automatic locking if person fails to pass within designated time
- Multi-passage configuration for various application demands
- Programmable signal separate control for pass time and speed parameters
- Compatible with RFID card readers, fingerprint readers, and facial recognition systems
- Long-distance management capabilities through computer interface
- Customizable options including LED display, voice guidance, warning lamps, indicator lights, and audible/visible alarms
Control & Interface Options
- Card readers for access control
- Metal detection capabilities
- Electronic/LCD counters
- Fail-open or fail-secure locking modes
- Push-button and wireless remote controls
- Manual key override for both directions
- Indicator lights for status monitoring
Manufacturing & Quality
Packaging & Shipping
System Operation

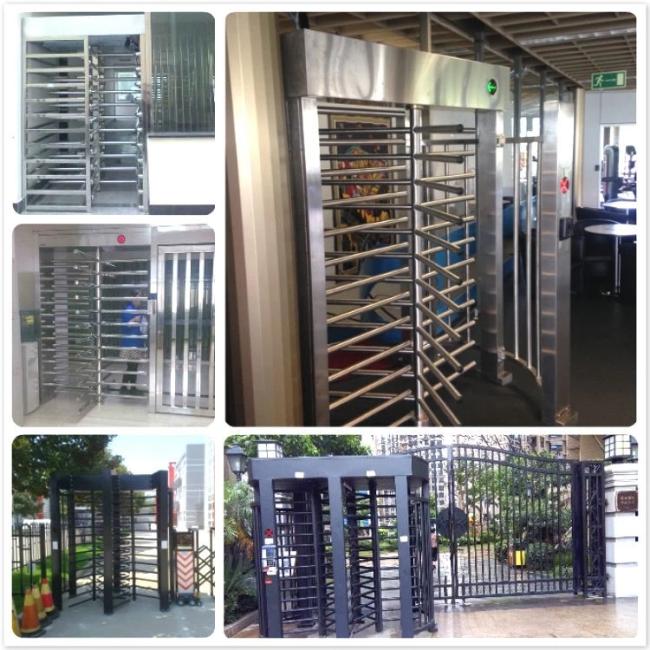

Installation References
