Double Lane IP54 1.5m Flap Sliding Barrier Turnstile for Access Control with DC Brushless Motor
Price:
Negotiable
MOQ:
Sample order accepted
Delivery Time:
5~10 days
Brand:
SINOMATIC
Product Description
Double Lane IP54 1.5m Flap Sliding Barrier Turnstile AC220V
Optical RFID Swiping Card Reader Intelligent Door Entry Pedestrian Passing Baffle Gate Access Control Equipment
Product Specifications
| Cabinet Material | 304 Stainless Steel |
|---|---|
| Dimensions | Cabinet: 1200*330*1000mm |
| Motor Type | DC brushless |
| Weight | 70KG |
| Arm Length | 250-300mm |
| Passage Width | 550-600mm |
| Dry Contact | 12V |
| Material Thickness | 1.5mm |
| Card-reading Window | Included |
| Direction | Bi-directional |
| Service Life | 5 million times |
| Operating Temperature | -25℃ ~ +60℃ |
| Related Humidity | ≥90%RH |
| Power Supply | AC220V/110V ±10% 50/60MHZ (optional) |
| NO PASSING Speed | 30-40 persons per minute |
| NC PASSING Speed | 20-30 persons per minute |
Product Images
Product Features
- Problem-self-checking function for reliable operation
- Control board with standard electrical interface for integration with various access control terminals
- Automatic arm opening during power failure with automatic holding when power is restored
- Adjustable arm closing delay from 1-60 seconds after valid card read
- Auto-reposition function with configurable passing time period
- Alarm system for unauthorized passage attempts
- Direction display to guide passenger flow
- Anti-rush function for secure operation
- Double anti-clipping protection: photocell and mechanical safety systems
- Multiple operating modes configurable through control panel

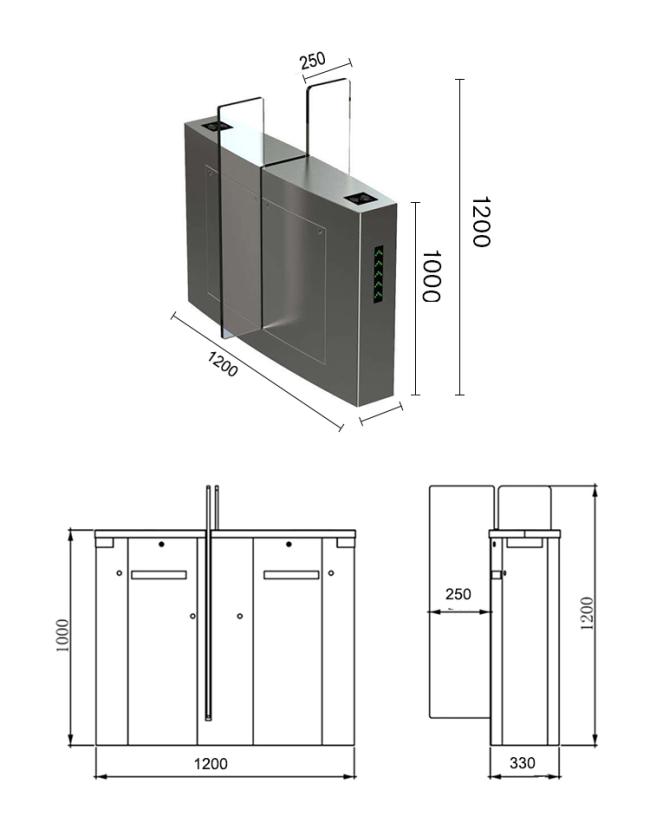

Product Dimensions
