550mm Passage Width 304 Stainless Steel Optical Arm Drop Turnstile with 5 Million Operation Cycles
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
12V 550mm Passage 60MHz SS304 Optical Arm Drop Turnstile
Advanced 12V dry contact control signal turnstile with 550mm passage width, featuring optical arm drop technology and biometric access control system integration.
Product Functions & Features
- Easy operation and convenient maintenance with breakdown self-check and alarm functions
- Flexible code dialing settings with dozens of performance options
- Infrared and mechanical anti-clamping for double protection with automatic stop or rebound during impact
- Multiple alarm patterns including illegal intrusion, reverse passing, anti-trailing, and overtime passing
- Impact resistant design with automatic arm locking without open signal
- Anti-reverse passing protection with immediate wing closure and alarm activation
- High brightness access indicator lights with user-friendly prompt functions
- Adjustable normal open/close modes via code-dialing or external manual button
- Automatic detection and reset function with adjustable timeout periods
- Emergency evacuation mode activates automatically during fire or power failure
- Compatible with various control equipment through relay switch signals
- Diverse passageway modes including one-way, two-way, and reverse free passage
- Strong environmental adaptability for harsh conditions including extreme weather and electrical variations

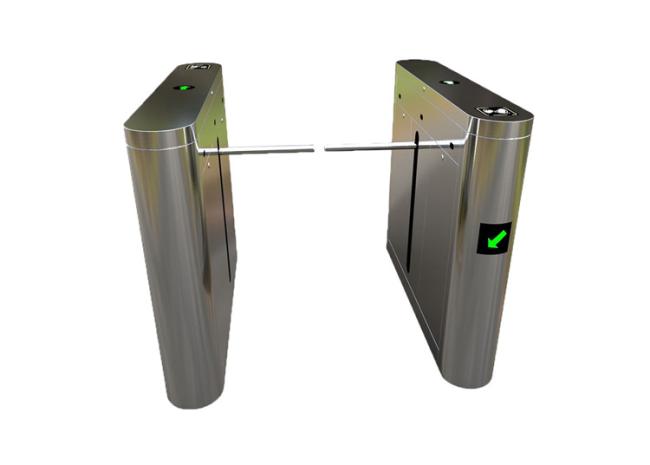

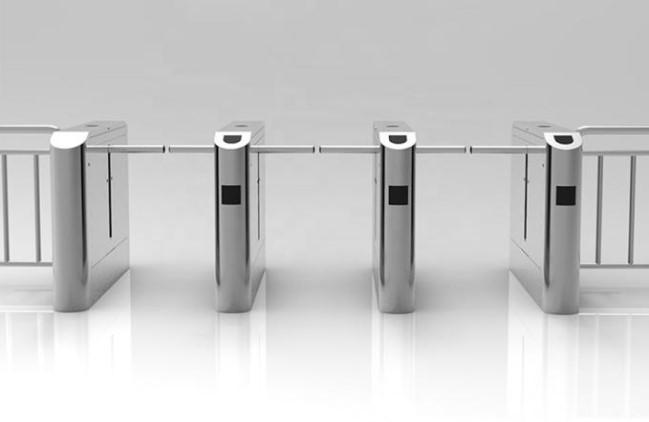

Product Images
Technical Specifications
| Cabinet Material | 304 Stainless Steel |
|---|---|
| Dimensions | Cabinet: 1200×150×1000mm |
| Motor Type | Single motor |
| Weight | 50KG |
| Arm Length | 500mm |
| Passage Width | 550mm for single unit |
| Dry Contact | 12V |
| Material Thickness | 1.2mm |
| Card-reading Window | Two |
| Direction | Bi-directional |
| Service Life | 5 million times |
| Operating Temperature | -25℃ ~ +60℃ |
| Related Humidity | ≥90%RH |
| Power Supply | AC 220V/110V ±10% 50/60MHz (optional) |
| Opening Speed | 30-45 persons per minute |
| Closing Speed | 25-35 persons per minute |
Applications
- Station, dock, site, school, supermarket entrance control management
- Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
- Enterprises and institutions attendance, access control, consumption entrance and exit control management
- Special channel access control
Our Service Commitment
- Free technical training, guidance and product information
- Technical staff guidance for installation and quality issue resolution
- 1-year warranty with lifelong maintenance support
- 24-hour response to customer requirements and complaints
- Free maintenance and replacement for quality failures during warranty period
- Technical support via phone, fax, email, and Skype
- Comprehensive after-sale services and technical support
