Clear Acrylic Flap Full Height Sliding Turnstile with DC Brushless Motor and 4 Pairs Sensor for Access Control

Price Negotiable

Price: Negotiable

MOQ: Sample order accepted

Delivery Time: 5~10 days

Brand: SINOMATIC

Product Description

Acrylic Flap Pedestrian Full Height Sliding Turnstile SS304

SINOMATIC Access Control System Pedestrian Safety Full Height Sliding Turnstile Security Barriers

Product Overview

Sliding barriers provide a reliable and efficient method to ensure only authorized users gain access to specific building areas. This attractive speed gate turnstile is designed to handle high-volume and demanding conditions with ease. The compact unit facilitates multiple lane configurations, while the variety of color options allows for seamless integration with your lobby design or corporate branding.

Functions and Features

Breakdown self-checking and alarm warning functions for convenient maintenance
Programmable operation modes via main board controls
Dual Anti-Pinch protection through mechanical structure and sensor detection
Automatic stop function when obstacles are detected during operation
Anti-rushing function with automatic door locking without opening signal
Synchronization adjustment capability for double-lock systems
Automatic reset function when passage is not used within allowed time
Configurable as normally open or normally closed to meet various field requirements
Compatible with multiple card-reading devices and electrical relay signals
One-way and two-way access control options
Remote control and management via computer interface
Automatic reset with time delay (typically 5 seconds after opening)
Automatic opening during power failure and closing when power is restored
Audio and visual alarms for break-in and reverse direction intrusion
Optional counting function
Enhanced Anti-Pinch protection with four pairs of infrared sensors

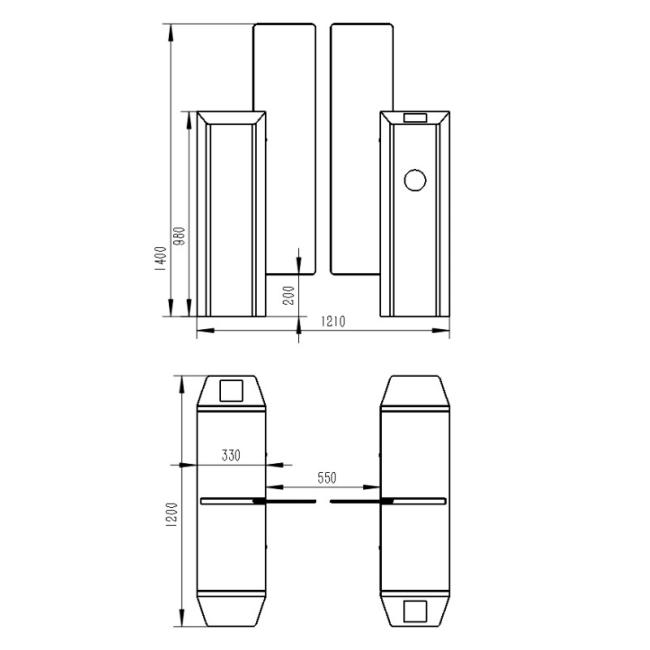

SINOMATIC Full Height Sliding Turnstile showing security barrier design and construction

Technical Specifications

Cabinet Material	304 Stainless Steel
Dimensions	Cabinet: 1200×330×1000mm
Motor Type	DC brushless
Weight	70KG
Arm Length	250-300mm
Passage Width	550-600mm
Dry Contact	12V
Material Thickness	1.5mm
Card-reading Window	Included
Direction	Bi-directional
Service Life	5 million cycles
Operating Temperature	-25℃ to +60℃
Related Humidity	≥90%RH
Power Supply	AC220V/110V ±10% 50/60MHZ (optional)
NO PASSING Speed	30-40 persons per minute
NC PASSING Speed	20-30 persons per minute
