30W SS304 Half Height Turnstile Gate with 24V Control for Access Control Systems
Price:
Negotiable
MOQ:
Sample order accepted
Delivery Time:
7~10 days
Brand:
Sinomatic
Product Description

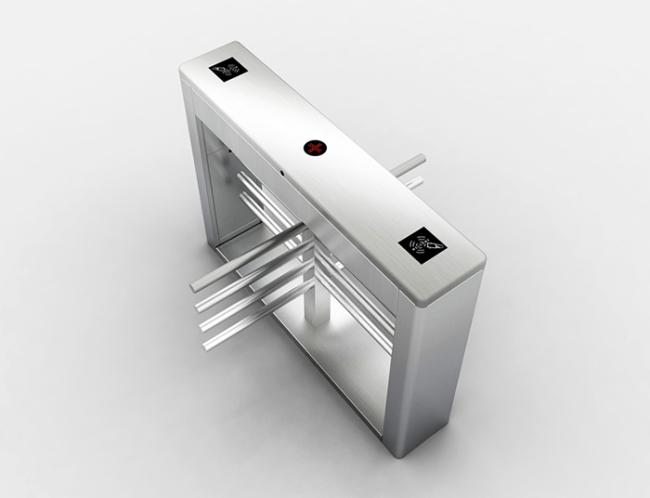

30W SS304 Acrylic Half Height Turnstile Gate
24V waist height security revolving turnstile door designed for controlled access management.
Product Overview
This stainless steel half height turnstile gate is available in 90-degree and 120-degree configurations, providing secure access control with emergency free passage capabilities. Ideal for managing entrance and exit channels while preventing unauthorized access.
Product Specifications
| Size | 1400x300x1000mm (length*width*height) |
| Material | 1.2mm 304 stainless steel |
| Passage Direction | Single directional/Bi-directional |
| Operating Time | 0.2 seconds |
| Traffic Speed | 30-35 persons/minute |
| Channel Width | ≤500mm |
| Input Voltage | AC100-240V, 50/60HZ |
| Drive Voltage | 24V |
| Working Temperature | -40ºC to +70ºC |
| Power | 30W |
| Communication Interface | RS485, Dry contact |
| Application | Factory, Museum park, Stadium, etc |
Main Functions and Features
- Advanced transmission system with manual rotating brake lever and automatic reset mechanism for enhanced safety and reliability
- Smooth operation with minimal noise
- Multiple working modes including bidirectional card reading and directional restrictions
- Remote operation capability for emergency unlocking to meet fire safety requirements
- Standard external electrical interface compatible with various reading devices
- Automatic passenger counting with LED display
- Clear passage indication through LED or backlight signals
- Configurable memory function with built-in touch button controls
- Automatic reset function with customizable access time limits
Product Applications
- Office spaces: commercial buildings, government offices
- Educational and research facilities: universities, research institutes, libraries
- Commercial establishments: supermarkets, shopping malls, hotels, clubs, banks
- Entertainment venues: parks, scenic areas, playgrounds
- Transportation hubs: bus, train, subway stations, airports
Optional Functions
- Counting and alarm functions
- Biometric identification: face recognition, fingerprint
- QR code scanning capabilities
- LED screen display and touch screen interfaces
- Customizable height and width dimensions
- Multiple material options including 304 stainless steel and A3 steel
- Integration with access control, consumption, attendance, and electronic ticket systems
