DC24V Full Height Turnstile SUS304 40W Mechanism Office Building
Price:
negotiable
MOQ:
Sample order accepted
Delivery Time:
5-10 working days after payment received
Brand:
SINOMATIC
Product Description
DC24V Full Height Turnstile SUS304 40W Mechanism
Professional security turnstile gate designed for office buildings and high-security facilities with robust construction and advanced access control features.
Product Overview

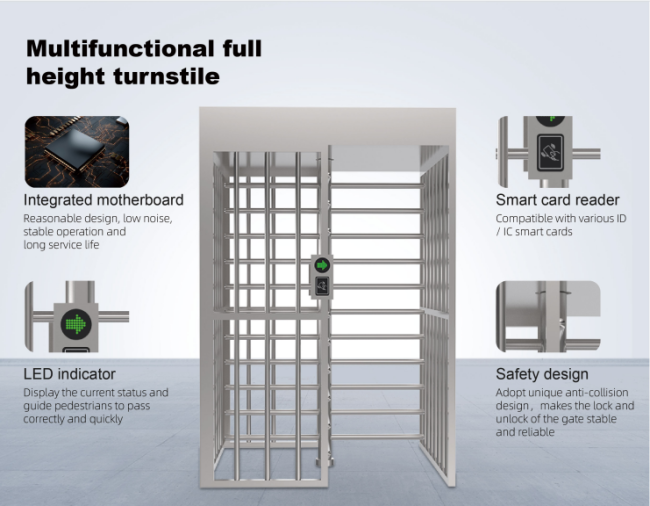

This high-security full height turnstile gate features a fully welded construction for maximum durability. It provides reliable and efficient access control to ensure only authorized personnel can enter secured areas. Ideal for stadiums, factories, parks, and premises with the highest security requirements.
Main Functions & Features
- Modular design consisting of frame and core components
- Signal reading device installation on frame
- Single or bi-directional access (optional)
- Self-resetting function with configurable timing
- Opposite direction passing prevention
- Automatic open/close function during power failure
- Direction indicator for passage status
- Control board with counting and LED display functions
- Memory function for group passage
- Optical hole focus technology for instant response
Technical Specifications
| Parameter | Specification |
|---|---|
| Case Material | SS304 Stainless Steel |
| Barrier Arm Material | SS304 Stainless Steel |
| Production Process | CNC Laser Cutting |
| Overall Dimension | 1450×1450×2300mm |
| Power Input | AC100-240V, 50/60Hz |
| Operation Voltage | DC24V, 3A, 40W |
| Barrier Arm Length | 550mm |
| Arm Max Applied Force | 600mm (Customizable) |
| Throughput Rate | 30-35 persons/minute |
| MCBF | 5,000,000 Cycles |
| Operation Temperature | -20℃ to +60℃ |
| Protection Level | IP45 |
Why Choose Our Turnstile Solutions
- Over 20 years of OEM/ODM experience in access control systems
- Prompt delivery with standard model inventory
- Custom OEM/ODM orders accepted
- Sample testing available before bulk orders
- Comprehensive online technical support
- Multiple transportation options available
- Factory visits welcome on working days
