IRF4905LPBF P-Channel MOSFET 55V/-74A Ultra-Low 20mΩ RDS(on) Avalanche Rated TO-220AB Lead-Free High Efficiency Reliable for Power and Motor Control
IRF4905LPBF P-Channel MOSFET 55V/-74A Ultra-Low 20mandOmega; RDS(on) Avalanche Rated TO-220AB Lead-Free High Efficiency Reliable for Power andamp; Motor Control
andnbsp;
Features
Advanced Process Technology
Ultra Low On-Resistance
150anddeg;C Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Some Parameters Are Differrent from IRF4905S
Lead-Free
andnbsp;
Applications
andnbsp;
1. Motor Drive andamp; Control
DC motors (e.g., power tools, robotics, car window lifters)
Stepper and servo motor drives
Speed regulation in industrial automation
2. Power Management andamp; Switching Circuits
DC-DC converters, synchronous rectification
Load switches, reverse polarity protection
Battery management systems (BMS)
3. Industrial andamp; Automotive Electronics
Relay/contactor replacements
12V/24V automotive systems (e.g., LED drivers, pump control)
Industrial power supplies and inverters
4. High-Reliability Applications
Reverse polarity protection (benefits from P-MOS characteristics)
Hot-swap power management
Solar power systems, UPS backup power
andnbsp;
Description
Features of this design are a 150anddeg;C junction oper ating temperature, fast switching speed and im proved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in a wide variety of other applications.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
andnbsp;
|
|
|
Packaging
|
Tube
|
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
FET Type
|
andnbsp;
|
|
|
Technology
|
andnbsp;
|
|
|
Drain to Source Voltage (Vdss)
|
55 V
|
andnbsp;
|
|
Current - Continuous Drain (Id) @ 25anddeg;C
|
andnbsp;
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
andnbsp;
|
|
Rds On (Max) @ Id, Vgs
|
20mOhm @ 42A, 10V
|
andnbsp;
|
|
Vgs(th) (Max) @ Id
|
4V @ 250andmicro;A
|
andnbsp;
|
|
Gate Charge (Qg) (Max) @ Vgs
|
180 nC @ 10 V
|
andnbsp;
|
|
Vgs (Max)
|
andplusmn;20V
|
andnbsp;
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
3500 pF @ 25 V
|
andnbsp;
|
|
FET Feature
|
-
|
andnbsp;
|
|
Power Dissipation (Max)
|
170W (Tc)
|
andnbsp;
|
|
Operating Temperature
|
-55anddeg;C ~ 150anddeg;C (TJ)
|
andnbsp;
|
|
Grade
|
-
|
andnbsp;
|
|
Qualification
|
-
|
andnbsp;
|
|
Mounting Type
|
Through Hole
|
andnbsp;
|
|
Supplier Device Package
|
TO-262
|
andnbsp;
|
|
Package / Case
|
andnbsp;
|
|
|
Base Product Number
|
andnbsp;

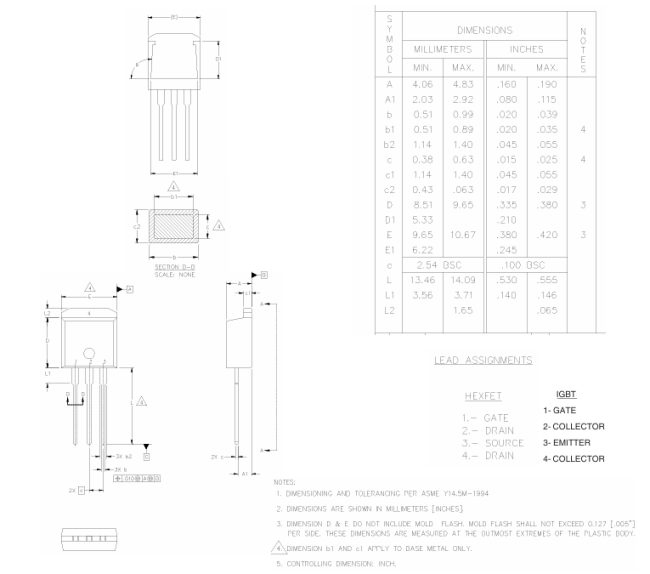

Drawing
