BSM25GD120DLCE3224 1200V/25A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for UPS & Solar Inverters
BSM25GD120DLCE3224 1200V/25A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for UPS & Solar Inverters
Features
-
Voltage/Current Rating: 1200 V / 25 A
-
Configuration: Dual IGBT
-
Low Saturation Voltage: VCE(sat) for high efficiency.
-
High-Speed Switching: Low switching losses.
-
Low Power Losses: Optimized for overall system efficiency.
-
Built-in NTC Thermistor: For thermal monitoring and protection.
-
Isolated Baseplate: Simplifies heatsink assembly and improves safety.
-
Industrial Grade Reliability: Designed for long service life.
Applications
-
Solar Inverters: Used in the power conversion stage of residential and commercial photovoltaic systems.
-
Uninterruptible Power Supplies (UPS): Employed in the inverter section of online and line-interactive UPS systems.
-
Industrial Motor Drives: For controlling AC motors in pumps, fans, and compressors.
-
Welding Equipment: Provides the switching core for industrial welding machines.
-
Induction Heating: Used in the power circuits of induction heating and melting systems.
Description
The BSM25GD120DLCE3224 is a high-performance dual IGBT module, rated for 1200V and 25A. It is engineered to deliver high efficiency and reliability in demanding power conversion applications. The module features a low collector-emitter saturation voltage (VCE(sat)) and is optimized for high-speed switching, resulting in low switching and conduction losses.
This robust module includes a built-in NTC thermistor for accurate temperature monitoring and protection, and features an isolated baseplate for easy and safe mounting to a heatsink. Its industrial-grade construction ensures long-term stability and performance, making it a durable solution for a wide range of power electronics.
INFORMATION
| Manufacturer: | Infineon |
| Product Category: | IGBT Modules |
| Product: | IGBT Silicon Modules |
| Configuration: | Hex |
| Collector- Emitter Voltage VCEO Max: | 1200 V |
| Collector-Emitter Saturation Voltage: | 2.1 V |
| Continuous Collector Current at 25 C: | 50 A |
| Gate-Emitter Leakage Current: | 400 nA |
| Pd – Power Dissipation: | 200 W |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Height: | 17 mm |
| Length: | 107.5 mm |
| Width: | 45 mm |
| Brand: | Infineon Technologies |
| Mounting Style: | Screw |
| Maximum Gate Emitter Voltage: | +/- 20 V |
| Product Type: | IGBT Modules |
| Subcategory: | IGBTs |

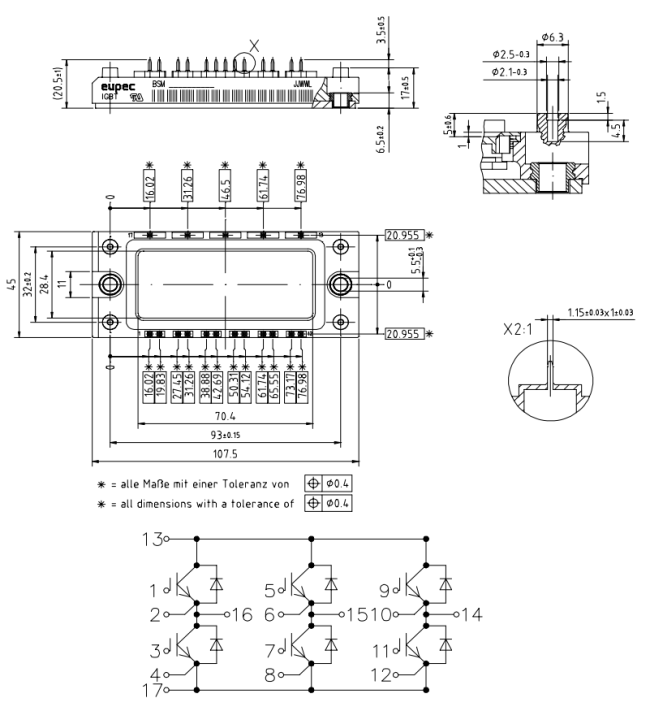

Drawing
