BSM150GT120DN2 1200V/150A IGBT Module Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for Heavy-Duty Motor Drives & Industrial UPS

BSM150GT120DN2 1200V/150A IGBT Module Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for Heavy-Duty Motor Drives & Industrial UPS

Features

• High Power Rating: 1200 V / 150 A

• Configuration: Dual IGBT

• Low Saturation Voltage: VCE(sat) for reduced conduction losses.

• Low Switching Losses: Enables efficient high-frequency operation.

• Built-in NTC Thermistor: For real-time thermal monitoring and protection.

• Isolated Baseplate: Facilitates easy cooling system assembly and enhances safety.

• High Ruggedness: Superior short-circuit withstand capability.

• Low Thermal Impedance: Efficient heat dissipation for reliable operation.

Applications

• Heavy-Duty Motor Drives: For controlling large AC motors in industrial pumps, fans, compressors, and extruders.

• Industrial UPS: Forms the core of the inverter stage in high-capacity uninterruptible power supplies for data centers and manufacturing plants.

• Welding Equipment: Provides the robust switching foundation for industrial welding machines.

• Induction Heating: Used in the power circuits of high-power induction heating systems.

• Power Quality Systems: Such as active power filters and static VAR generators for industrial facilities.

Description

The BSM150GT120DN2 is a high-power dual IGBT module engineered for robust performance in demanding industrial power conversion systems. Rated for 1200V and 150A, it provides a reliable and efficient power stage for high-current applications. The module is designed with a low collector-emitter saturation voltage (VCE(sat)) and optimized for low switching losses, ensuring high efficiency and minimal power dissipation.

This module incorporates critical features for system reliability, including a built-in NTC thermistor for accurate temperature monitoring and a fully isolated baseplate for simplified and safe heatsink mounting. Its industrial-grade construction guarantees high ruggedness, excellent thermal cycling capability, and long-term stability under the most strenuous operating conditions.

INFORMATION

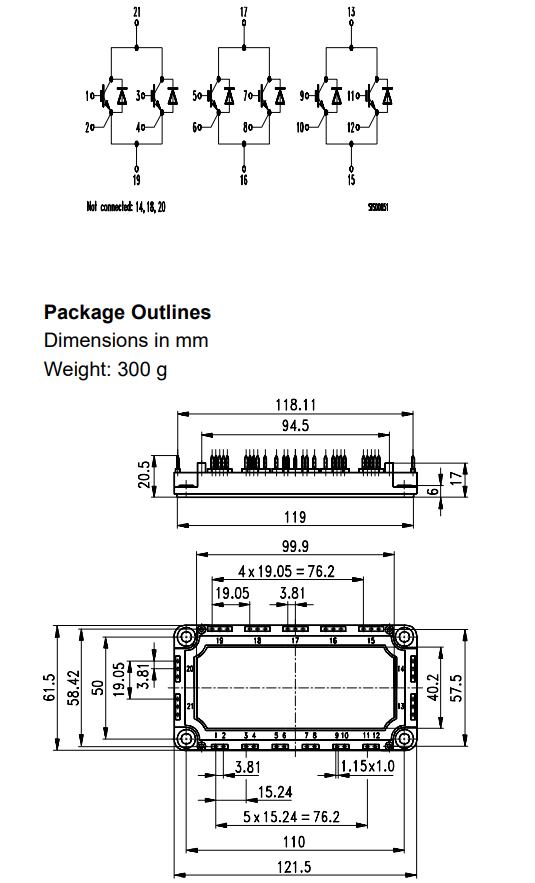

Drawing
