7MBR50XPA120-50 1200V 50A PIM Module Integrated Rectifier Inverter Low Loss High Isolation Built-in NTC Compact Package For Industrial Motor Drives and UPS

7MBR50XPA120-50 1200V 50A PIM Module Integrated Rectifier Inverter Low Loss High Isolation Built-in NTC Compact Package For Industrial Motor Drives and UPS

Features

• Power Integrated Module (PIM)

• 1200V / 50A Rating

• Integrated Functions: 3-Phase Rectifier and 3-Phase Inverter

• Low Vce(sat) IGBTs and Low Vf Diodes (High Efficiency)

• High Electrical Isolation

• Built-in NTC Temperature Sensor

• Compact, Isolated Package

• Simplifies System Design and Assembly

• High Reliability for Industrial Use

Applications

• Compact Industrial AC Motor Drives / Variable Frequency Drives (VFD): For pumps, fans, and light machinery.

• General-Purpose Inverters.

• Uninterruptible Power Supply (UPS) Systems.

• Servo Drives and Motion Control Systems.

• Appliance Motor Control in demanding environments.

Description

The 7MBR50XPA120-50 is a highly integrated Power Integrated Module (PIM) designed to provide a compact and efficient all-in-one power stage for industrial motor drives and inverter applications. It integrates a complete three-phase input rectifier and a three-phase IGBT inverter bridge with freewheeling diodes into a single, isolated package. Rated for 1200V and 50A, it enables a significant reduction in system size and design complexity by minimizing external component count. The module utilizes low-saturation voltage IGBTs and low-forward-voltage diodes for high efficiency, offers high electrical isolation for safety, and includes a built-in NTC thermistor for reliable temperature monitoring and protection. This integrated approach enhances overall system reliability and simplifies thermal management.

INFORMATION

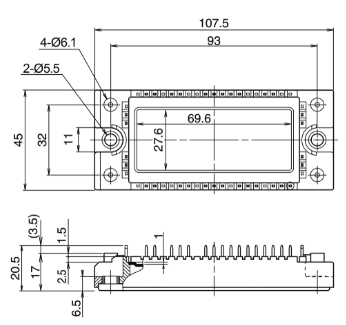

Drawing
