SEMIX603GB12E4P 1200V 600A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation Industrial Grade For High Power UPS and Industrial Drives

SEMIX603GB12E4P 1200V 600A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation Industrial Grade For High Power UPS and Industrial Drives

Features

• Homogeneous Si

• Trench = Trenchgate technology

• High short circuit capability

• Press-fit pins as auxiliary contacts

• Thermally optimized ceramic

Applications

• AC inverter drives

• UPS

• Renewable energy systems

Description

The SEMIX603GB12E4P is a high-power, high-current IGBT module engineered for demanding industrial power conversion systems requiring substantial current handling. It delivers a high voltage rating of 1200V combined with a very high current rating of 600A. Utilizing advanced IGBT and diode chip technology, it achieves an excellent balance between low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and optimized switching characteristics for high efficiency. The module is built for maximum industrial ruggedness, featuring high short-circuit withstand capability, excellent electrical isolation, and a thermally efficient, low-inductance package design to ensure reliable and stable operation under high-stress conditions.

INFORMATION

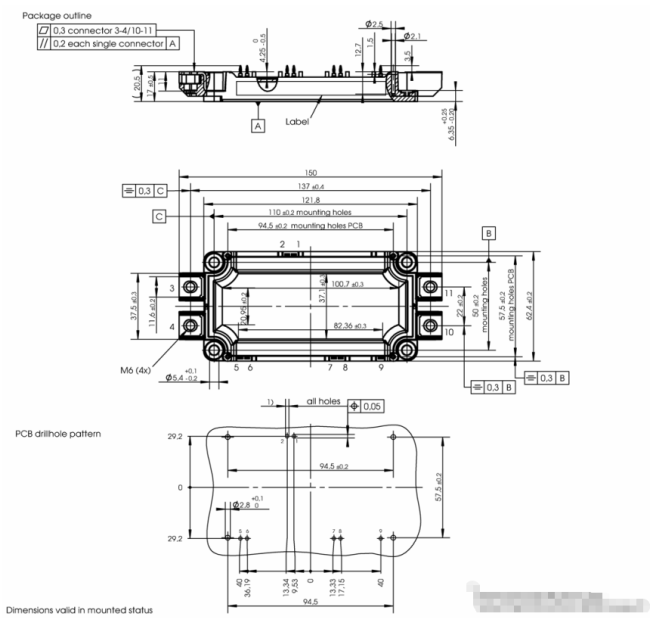

Drawing
