CM200RL-24NF 1200V 200A Dual IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss For Industrial Motor Drives and High Power UPS

CM200RL-24NF 1200V 200A Dual IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss For Industrial Motor Drives and High Power UPS

Features

•  Low Drive Power

•  Low VCE(sat)

•  Discrete Super-Fast Recovery Free-Wheel Diode

•  Isolated Baseplate for Easy Heat Sinking

Applications

•  AC Motor Control

•  Motion/Servo Control

•  Photovoltaic/Fuel Cell

Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of six IGBT Transistors in a three phase bridge configuration and a seventh IGBT with free wheel diode for dynamic braking. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

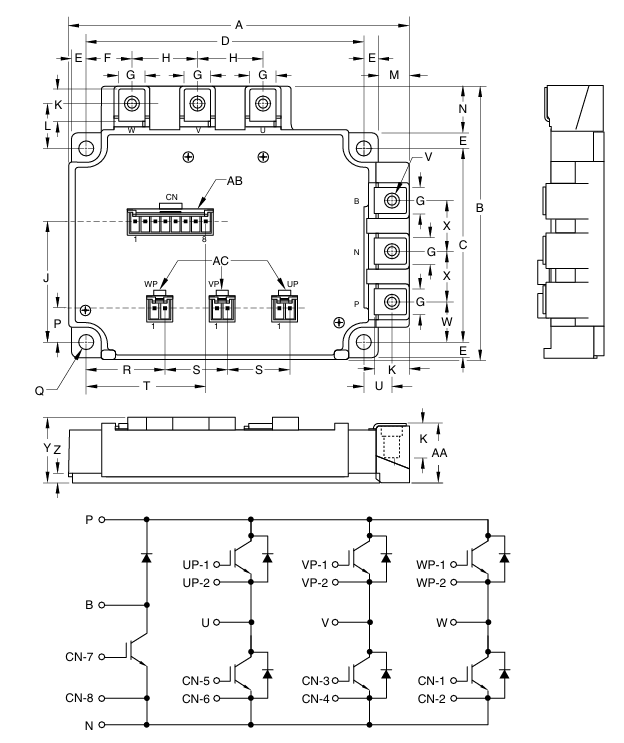

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
