FP75R12KT4 B16 1200V 150A PIM IGBT Module Trench Field Stop Low VCE(sat) 2.25V Integrated Rectifier and NTC Copper Baseplate 150°C Operation For Motor Drives and UPS
FP75R12KT4 B16 1200V 150A PIM IGBT Module Trench Field Stop Low VCE(sat) 2.25V Integrated Rectifier and NTC Copper Baseplate 150°C Operation For Motor Drives and UPS
Features
-
1200V / 150A PIM (Power Integrated Module)
-
Integrated Topology: 3-Phase Rectifier, 3-Phase Inverter, Brake Chopper
-
Advanced TRENCHSTOP™ IGBT4 with Trench Field Stop Technology
-
Low Switching Losses for High Efficiency
-
Low VCE(sat) of 2.25V @ 15V, 75A
-
Copper Baseplate for Optimized Heat Spread
-
Integrated NTC Temperature Sensor
-
Operating Temperature Range: -40°C ~ 150°C
-
Compact EconoPIM™ 3 Housing with Chassis Mount
Applications
-
Industrial Motor Drives: For pumps, fans, compressors, and general-purpose AC drives
-
Uninterruptible Power Supplies (UPS)
-
Variable Frequency Drives (VFD) and Inverters
-
HVAC Systems and industrial automation
Description
The FP75R12KT4 B16 is a highly integrated 1200V, 150A Power Integrated Module (PIM) from Infineon's EconoPIM™ 3 family . It combines a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper in a single, compact, and isolated module . Built with advanced TRENCHSTOP™ IGBT4 technology featuring a Trench Field Stop structure, it is engineered for low switching losses and high efficiency . The module achieves a low collector-emitter saturation voltage of 2.25V typical at 75A, enhancing energy efficiency . It features an integrated NTC temperature sensor for accurate thermal monitoring and a copper baseplate for optimized heat dissipation . Designed for high reliability, it supports an extended operating temperature up to 150°C
INFORMATION
|
category
|
Discrete semiconductor products
Transistors
IGBT
IGBT module
|
|
|
manufacturer
|
Infineon Technologies
|
|
|
series
|
EconoPIM™ 3
|
|
|
Packaging
|
Tray
|
|
|
Part status
|
On sale
|
|
|
IGBT type
|
Grooved field cut-off
|
|
|
configuration
|
(3) Opposite phase instrument
|
|
|
Voltage - Collector breakdown (max)
|
1200 V
|
|
|
Current - Collector (IC) (max)
|
150 A
|
|
|
Power - maximum
|
385 W
|
|
|
Vce(on) (maximum) at different Vge, IC
|
2.25V @ 15V,75A
|
|
|
Current - Collector cut-off (max)
|
1 mA
|
|
|
Input Capacitance (Cies) at Different VCEs
|
4.3 nF @ 25 V
|
|
|
Input
|
Three-phase bridge rectifier
|
|
|
NTC thermistors
|
is
|
|
|
Operating temperature
|
-40°C ~ 150°C
|
|
|
Mounting type
|
Base mounting
|
|
|
Package/Enclosure
|
module
|
|
|
Vendor device packages
|
module
|

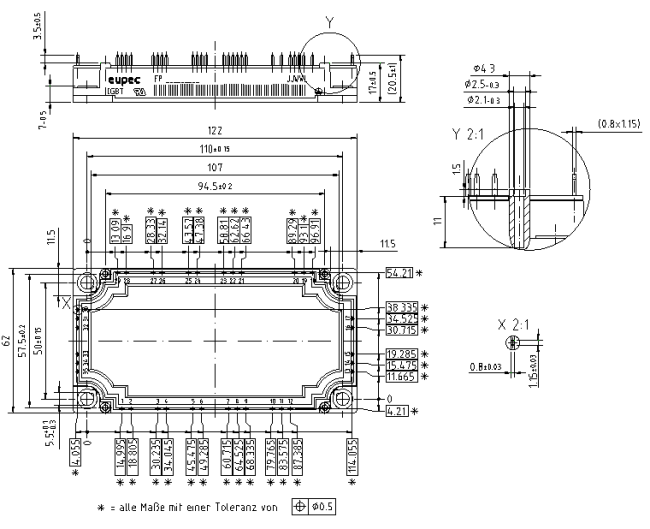

Drawing
