IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives
IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives
Features
-
International Standard Package
-
miniBLOC, with Aluminium Nitride Isolation
-
Low RDS(on) and QG
-
Avalanche Rated
-
Low Package Inductance
-
Fast Intrinsic Rectifier
Applications
-
High Power Density
-
Easy to Mount
-
Space Savings
Description
Switch-Mode and Resonant-Mode Power Supplies
DC-DC Converters
Laser Drivers
AC and DC Motor Drives
Robotics and Servo Controls
INFORMATION
|
category
|
Discrete semiconductor products
Transistors
FET,MOSFET
Single FETs, MOSFETs
|
|
|
manufacturer
|
IXYS
|
|
|
series
|
HiPerFET™, Polar
|
|
|
Packaging
|
Pipe fittings
|
|
|
Part status
|
On sale
|
|
|
FET type
|
N channel
|
|
|
Technology
|
MOSFETs (Metal Oxides)
|
|
|
Drain Source Voltage (Vdss)
|
900 V
|
|
|
Current at 25°C - Continuous Drain (ID)
|
56A(Tc)
|
|
|
Drive Voltage (Max RDS On, Min RDS ON)
|
10V
|
|
|
On-resistance at different IDs and Vgs (max)
|
135 mOhm @ 28A, 10V
|
|
|
Vgs(th) for different IDs (maximum)
|
6.5V @ 3mA
|
|
|
Gate charge (Qg) at different Vgs (max)
|
375 nC @ 10 V
|
|
|
Vgs (max)
|
±30V
|
|
|
Input Capacitance (CIS) at Different Vds (Max)
|
23000 pF @ 25 V
|
|
|
FET function
|
-
|
|
|
Power Dissipation (Max)
|
1000W(Tc)
|
|
|
Operating temperature
|
-55°C ~ 150°C(TJ)
|
|
|
grade
|
-
|
|
|
Qualifications
|
-
|
|
|
Mounting type
|
Base mounting
|
|
|
Vendor device packages
|
SOT-227B
|
|
|
Package/Enclosure
|
SOT-227-4,miniBLOC
|

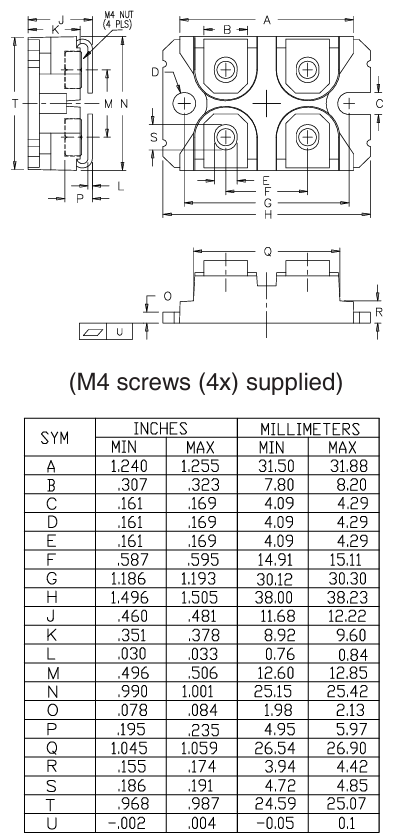

Drawing
