SPHD-001T-P0.5 Compact high-retention low-insertion vibration-resistant easy crimp 26-28 AWG ideal for tight electronics

Features

• Current rating: up to 2 A

• Voltage rating: 100 V AC/DC

• Wire range: 28–26 AWG (0.08–0.13 mm²)

• Material: phosphor bronze with tin plating

• Contact design: box type with inner lance – provides high retention force with low insertion force

• Crimp type: open-barrel – compatible with automatic crimping machines or hand tools

• Temperature range: -25°C to +85°C

• Compatible housings: PH series (e.g., PHR-2 to PHR-12, or SMT versions like B2B-PH-SM4-TBT)

Applications

• Compact consumer electronics – wearable devices, portable audio, smart sensors

• Small battery packs – lithium battery protection circuits (e.g., for Bluetooth devices, e-cigarettes)

• Medical devices – portable monitors, diagnostic equipment

• Home appliances – control panels, display boards, small motors

• Prototyping and repairs – easy wire termination without soldering

Description

The SPHD-001T-P0.5 is a crimp-style socket contact designed for use with 2.0 mm pitch wire-to-board connector housings (compatible with JST PH series). It features a phosphor bronze base material with tin plating, providing reliable conductivity and corrosion resistance. This terminal accepts 28 to 26 AWG wires and utilizes a box-shaped contact area with an inner lance, ensuring secure mating retention and stable electrical performance. Its open-barrel design supports both automatic and manual crimping processes.

INFORMATION

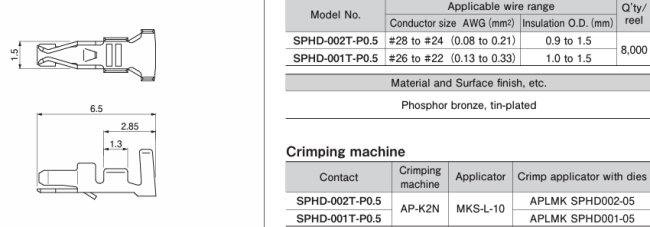

Drawing
