4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
Diesel Generator GPP600 (three phase)
Prime Power (kw/kva) | 600/750 |
Standby Power (kw/kva) | 660/825 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 1080 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 24V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 4450*1650*2400 |
Open Type-Weight (kg) | 5000 |
Soundproof Type- Dimension (L*W*H) (mm) | 4400*1850*2500 |
Soundproof Type-Weight (kg) | 11050 |
Fuel Tank Capacity(L) | 1000 |
Continuous Running Time(hr.) | 6 |
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Engine specifications:
1.Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
2.Technical data
Model 4006-23TAG2A
Engine brand | Perkins |
Output Power (kw) | 632 |
Cylinder No. & Config. | 6, in-line |
Combustion System | direct injection |
Compression Ratio | 13.6:1 |
Displacement (L) | 22.9 |
Bore X Stroke (mm) | 160*190 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 24V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 105 |
Fuel Consump. (g/kw·h) | 202 |
Oil Capacity (L) | 113.4 |
Alternator specifications:
Model LVI634B
Alternator brand | Stamford |
Rated Power (kw) | 600 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |

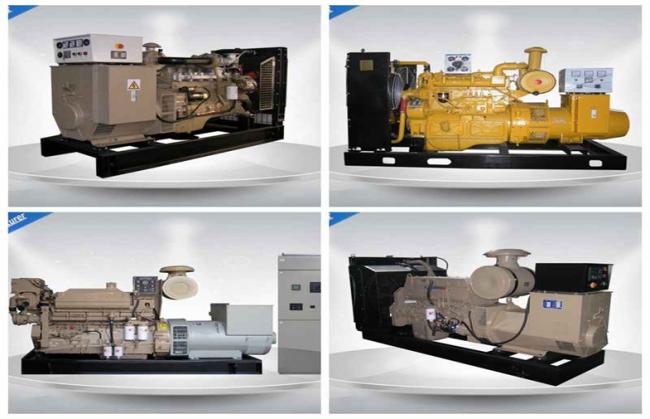

Product Picture:
Features and benefits
- Tightly structure, excellent design and craft
- Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
- Self-diagnostic capability simplifies troubleshooting
- LCD display shows system status and setup information
- Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
- Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
- Enclosed muffler for added quietness
- Service and maintenance accessible through easy-latch side service door
Warranty and Maintenance:
- Guarantee Period: One year or 1000 running hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through your shipping agency in China.
- Spare-parts can also be sent by air express.
- 24 hours service hotline is available for customers.
