60HZ 196kw 245kva Open Diesel Generator With Perkins Diesel Engine 960Ltr Big Fuel Tank
60HZ 196kw 245kva Open Diesel Generator With Perkins 1506A-E88TAG1 and 960Ltr Big Base Fuel Tank
Technical Specifications :
| Prime Power (kw/kva) | 196/245 |
| Standby Power (kw/kva) | 216/270 |
| Rated Voltage (V) | 440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 321 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2300*780*1250 |
| Open Type-Weight (kg) | 1350 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 2400 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |

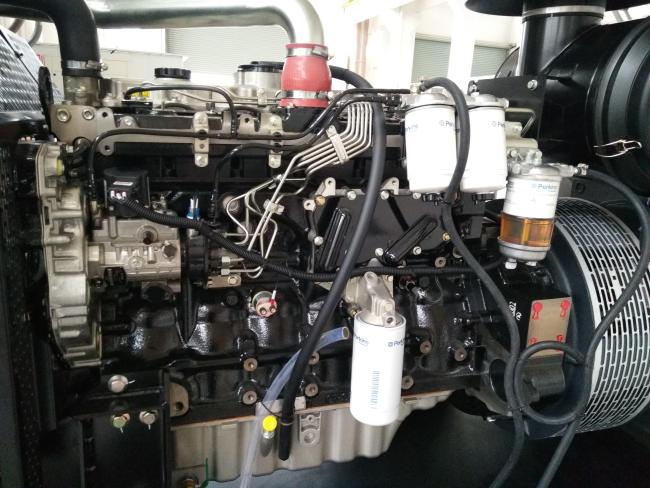

Engine :
Model 1506A-E88TAG1
| Engine brand | Perkins |
| Output Power (kw) | 218 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | Direct injection |
| Compression Ratio | 16.1:1 |
| Displacement (L) | 8.8 |
| Bore X Stroke (mm) | 112*149 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 37.2 |
| Fuel Consump. (g/kw·h) | 192 |
| Oil Capacity (L) | 26.5 |
Alternator :
Model UCI274H
| Alternator brand | Stamford |
| Rated Power (kw) | 196 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |

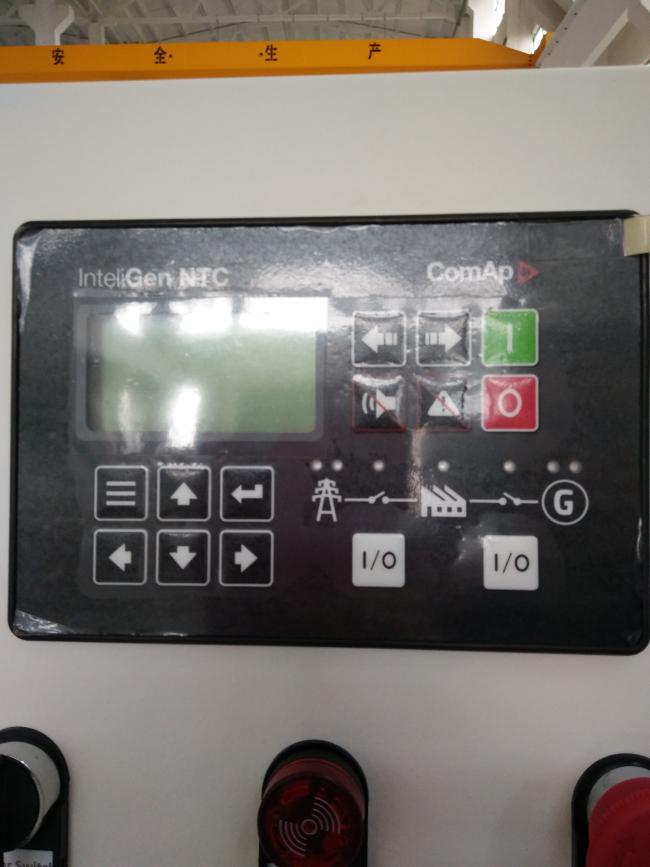

Control system:
1. Main features:
2. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
3. Security password-protected programming levels
4. All parameters use digital modulation, with higher reliability and stability
5. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
6. Power supply range is wide, accommodating to different starting battery voltage environment
7. Built-in watch dog can never be dead halt, ensuring smooth program execution
Our Service:
- If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
- Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
- Build customers’ profiles, follow-up service, make regular calls on customers.
Warranty and Maintenance:
- Guarantee Period: One year or 1000 running hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through your shipping agency in China.
- Spare-parts can also be sent by air express.
- 24 hours service hotline is available for customers.
