900Kva Industrial Three Phase Diesel Generator Soundproof 8 Cylinder For Hospitals
900Kva 3 Phase Industrial Generator Set Soundproof 8 Cylinder For Hospitals
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Diesel Generator GPP720 (three phase)
|
Prime Power (kw/kva) |
720/900 |
|
Standby Power (kw/kva) |
800/1000 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
1296 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
4450*1650*2402 |
|
Open Type-Weight (kg) |
7550 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
20ft container |
|
Soundproof Type-Weight (kg) |
19350 |
|
Fuel Tank Capacity(L) |
1200 |
|
Continuous Running Time(hr.) |
6 |
Engine specifications:
1.Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
2.Technical data
Model 4008TAG1A
|
Engine brand |
Perkins |
|
Output Power (kw) |
767 |
|
Cylinder No. & Config. |
8, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
13.6:1 |
|
Displacement (L) |
30.561 |
|
Bore X Stroke (mm) |
160*190 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
143(Temp.) / 149(Trop.) |
|
Fuel Consump. (g/kw·h) |
206 |
|
Oil Capacity (L) |
153 |

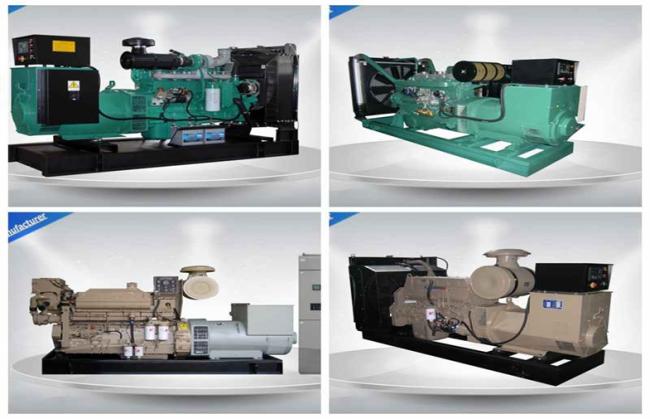

Product Picture:
Features and benefits
- Tightly structure, excellent design and craft
- Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
- Self-diagnostic capability simplifies troubleshooting
- LCD display shows system status and setup information
- Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
- Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
- Enclosed muffler for added quietness
- Service and maintenance accessible through easy-latch side service door
