800 Kw / 1000Kva Prime Power Open Diesel Generator 400 / 230 V Rated Voltage
800 Kw / 1000Kva Prime Power Open Diesel Generator 400 / 230 V Rated Voltage
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Perkins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
800 / 1000 |
|
|
Standby Power (kw/kva) |
880 / 1100 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
1440 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
1200 |
||
|
Engine |
Engine brand |
Perkins |
|
|
Output Power (kw) |
79 |
||
|
Cylinder No. & Config. |
8, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.6:1 |
||
|
Displacement (L) |
30.561 |
||
|
Bore X Stroke (mm) |
160*190 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Fuel Consumption (g/kw·h) |
206 | ||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system:
Brand: DeepSea,Comap,Smartgen
feature:
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Our Service:
- If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
- Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
- Build customers’ profiles, follow-up service, make regular calls on customers.
Warranty and Maintenance:
- Guarantee Period: One year or 1000 running hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through your shipping agency in China.
- Spare-parts can also be sent by air express.
- 24 hours service hotline is available for customers.

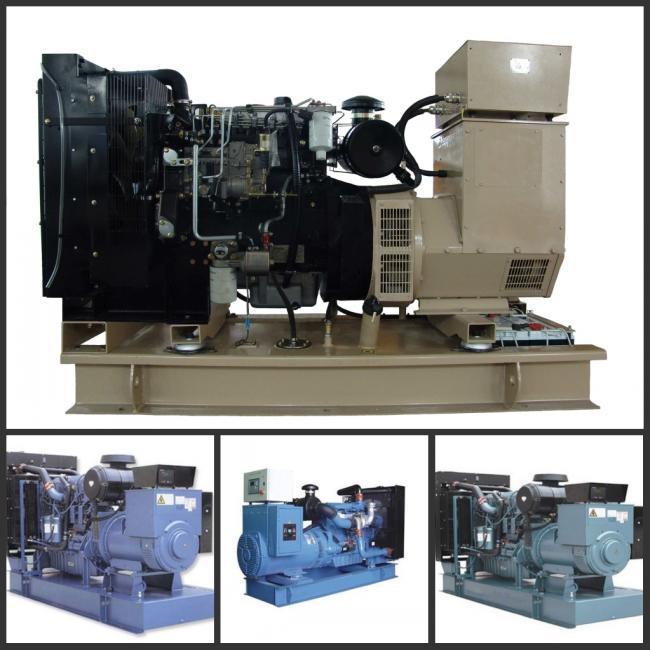

Product Picture:
