10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current
10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current
Specifications :
|
Item |
Content |
|
Operating Voltage |
DC8. 0V to 35. 0V, Continuous Power Supply |
|
Power Consumption |
Standby, 12V-0.3W, 24V-0.4W Working, 12V-1W, 24V-1.1W |
|
Alternator voltage Input |
1P2L 15V AC ~ 360 V AC (ph-N) |
|
Alternator Frequency |
50/60Hz |
|
Speed sensor voltage |
1V to 24V (active value) |
|
Speed sensor Frequency |
Max. 10kHz |
|
Max. accumulative running time |
99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.) |
|
Start Relay Output |
1Amp DC28V DC B+ power on to output |
|
Fuel Relay Output |
1Amp DC28V DC B+ power on to output |
|
Stop Relay Output |
1Amp DC28V DC B+ power on to output |
|
Idle Relay Output |
1Amp DC28V DC B+ power on to output |
|
Configured Relay Output |
1Amp DC28V DC B+ power on to output |
|
Switching value input port |
Active when connected with B- |
|
Overall dimensions |
88mm x 76mm x 44mm |
|
Panel cut off |
78x66mm |
|
Working conditions |
Temperature, (-25~+70)ºC Humidity, (20~90)% without condensation |
|
Storage Condition |
Temperature, (-30~+80)ºC |
|
Protective Level |
IP55, when waterproof rubber ring added between controller and its panel. IP42, when waterproof rubber ring not have between controller and its panel. |
|
Insulation Intensity |
Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1min 1mA leakage current |
|
Weight |
0.15kg |
Description

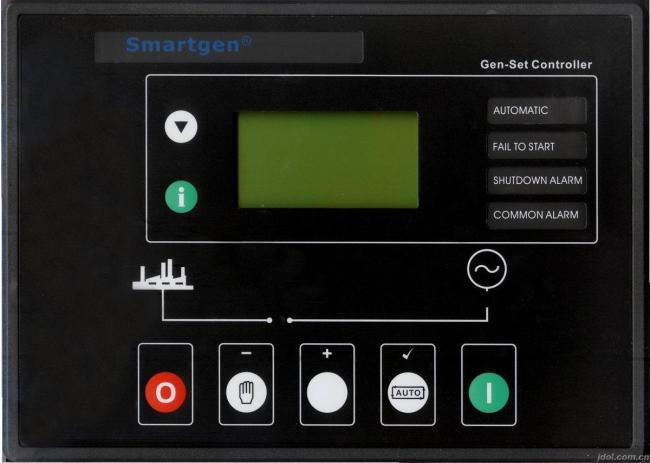

HGM400 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control system of generator. It can achieve automatic start/stop, data measuring and “three remote” functions (SG485 module is needed). The controller uses LCD display, optional Chinese, English, Spanish and Russian display interface with easy and reliable operation.
HGM400 series automatic controller uses micro-processing technique which can carry out precision measuring, constant value adjustment, timing and threshold setting and etc.. All the parameters can be adjusted from front panel or through programmable interface (USB to LINK, can use SG72 adaptor) via PC. It can be widely used in all types of generator automatic control system for compact structure, simple connections and high reliability.
Our Service:
- If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
- Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
- Build customers’ profiles, follow-up service, make regular calls on customers
Our Picture:
Our Main Product:
- Diesel Generating Set
- Gasoline Generating Set
- Gas Generating set
- Mobile Light Tower
- Forklift
- Air Compressor
- Control System
- Standard Control Panel
- Auto Control Panel
- Auto Parallel Control Panel
- ATS
- Brushless Alternat
Warranty and Maintenance:
- Guarantee Period: One year or 1000 running hours whichever comes first.
- During the guarantee period, the spare-parts will be sent through your shipping agency in China.
- Spare-parts can also be sent by air express.
