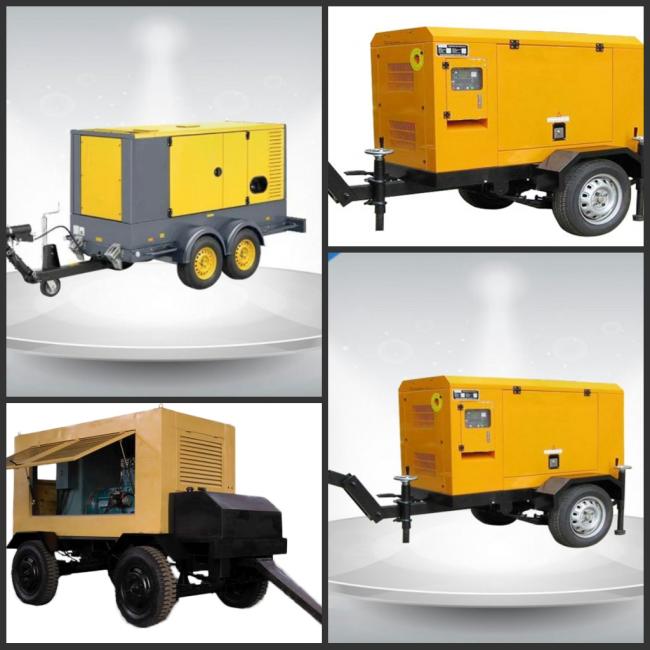

400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config
Trailer Feature:
- Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
- Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
- Widely used in construction sites, road and railway construction sites and temporary sites electricity.
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Diesel Generator GPP160 (three phase)
Prime Power (kw/kva) | 160/200 |
Standby Power (kw/kva) | 176/220 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 288 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 24V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 2377*780*1350 |
Open Type-Weight (kg) | 1465 |
Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
Soundproof Type-Weight (kg) | 3865 |
Fuel Tank Capacity(L) | 350 |
Continuous Running Time(hr.) | 8 |
Engine Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
400 / 230V Portable Trailer Mounted Generator 191 Kw Output Power In - Line Config - Easy installation and ready access for routine maintenance
Engine Technical data:
Model 1106A-70TAG4
Engine brand | Perkins |
Output Power (kw) | 191 |
Cylinder No. & Config. | 6, in-line |
Combustion System | direct injection |
Compression Ratio | 16:1 |
Displacement (L) | 7 |
Bore X Stroke (mm) | 105*135 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 24V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 21 |
Fuel Consump. (g/kw·h) | 204 |
Oil Capacity (L) | 16.5 |
Alternator Main features:
- Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
- 2/3 pitch winding as standard, to avoid excessive neutral currents
- Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP23 as standard
- Self-excited control system
- Resist of corruption of oil and acid.
Alternator Technical data
Model UCI274H
Alternator brand | Stamford |
Rated Power (kw) | 160 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
