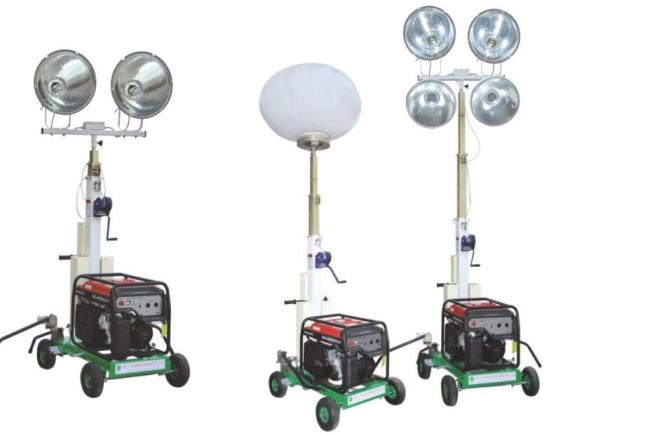

5 Kw / Kva Industrial Light Tower Mobile Led 50Hz 60Hz With Metal Halide Lamp
5 Kw / Kva Industrial Led Lighting Tower 50Hz / 60Hz With Metal Halide Lamp
Features:
- Four 100W lamps provide Maximum illumination.Telescopic ,Mechanical,2 stages mast up to 4.8 meters.
- Mast with self-locking makes work safer.
- Installed with silent diesel generator ,the light tower works with convenient power supply.
- Quiet dependable diesel engine provides flicker-free operation.
- Manual which for raising and lowing mast
- Applicable for the situation that the illumination needs to be changed at any time,expecialy.
- Desaster relief,large assembles,engineering repair wharf and air port.
|
Lamp pole maximum height(m) |
7m |
|
|
Engine Model |
186FAG3E |
|
|
Engine Type |
diesel, single cylinder,4 strock,Air-cooled upright type |
|
|
Engine speed (RPM) |
3600 |
|
|
Generator prime power (KVA) |
5KW |
|
|
Frequency |
60HZ |
|
|
Voltage |
120/240V |
|
|
Insulation Class |
F |
|
|
Lamps model |
E40 |
|
|
Lamps type |
Metal halide lamp |
|
|
Total power of lamps |
4*400W |
|
|
Fuel tank type |
top fuel tank |
|
|
Fuel tank capacity (L) |
33.5L |
|
|
Continuous operating (h) |
50H(4*400W) |
|
|
Luminous Flux (lm) |
4*110000lm |
|
|
Lamp pole type |
Manual |
|
|
lnclination |
<10º |
|
|
windproof Ability |
<6 |
|
|
Size(L*W*H)mm |
2380*1260*7000 |
|
|
Packing size(L*W*H)mm |
2340*1120*1100 |
|
Application:
For municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting
Specification
| Mast & Lamp | Max. extension of mast | 4.8m | 9m | 9m |
| Stages | 2 | 3 | 3 | |
| Total power of lamps | 4*400W | 4*1000W | 4*1000W | |
| Light capacity | 4*250000 lumen | 4*110000lumen | 4*110000lumen | |
| Lifetime of lamp | 2000 hours | 5000 hours | 5000 hours | |
| Generator | Model | END6500I | EN-10k | END-20C |
| Rated Power | 50Hz 4.2kw | 50Hz 6.0kw | 50Hz 20kw | |
| 60Hz 5.0kw | 60Hz 8.0kw | 60Hz 23kw | ||
| Standby Power | 50Hz 4.5kw | 50Hz 7.0kw | 50Hz 22kw | |
| 60Hz 5.5kw | 60Hz 9.0kw | 60Hz 25kw | ||
| Engine model | RP186FA | Kubota D1105-BG | with perkins engine 1003G | |
| Fuel tank capacity | 16L | 100L | 120L | |
| Prime fuel consumption | ≤1.65L/h | ≤2.0L/h | ≤5.25L/h | |
| Trailer | Stabilizer Support | 4*manual | 5*manual | 5*manual |
| Tire Size | Diameter=25cm | Diameter=25cm | Diameter=25cm | |
| Anti-wind capacity | ≤6 | ≤10 | ≤10 | |
| Dimension | Dimension(mm) | 1300*840*2600 | 4400*1200*1930 | 4400*1450*2100 |
| Net Weight | 350kg | 870kg | 1950kg |
Benefits of GLOBAL POWER mobile lighting towers:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection
