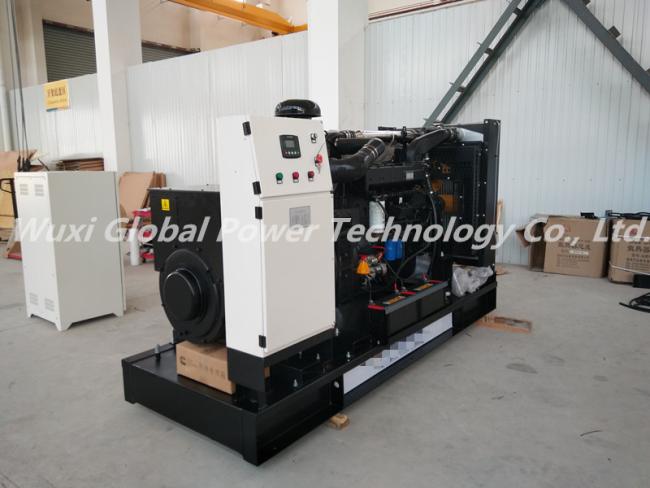

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
Chinese Diesel Generator Sets Global Power 313 KVA 400 V 50 HZ 3 PHASE Price Cheap for Sale
This Chinese KOFO Powered diesel generator is suitable for continuous use and has plenty of power to the plant, hospital, outdoor project, . This unit operates at 1500-1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.
| Genset Model | GPK250 |
| Prime Output (KW / KVA) | 250 KW / 313 KVA |
| Standby Output (KW / KVA) | 275 KW / 344 KVA |
| Voltage, Phase and Wire | 400 V / 3 Phase / 4 Wires |
| Maximum Output Current | 451 AMP |
| Engine Brand and Model | KOFO WT 12D-308E |
| Alternator Brand and Model | WATTEK WHI4DC |
| Engine Speed RPM | 1500 |
| Frequency | 50 HZ |
Ratings at 0.8 power factor
|
Rating definitions
50HZ 1500m: (Operation at altitude ≤1500m, Ambient temperature ≤40℃) if altitude higher than 1500m, each 100m will cause additional de-rating 1%
|

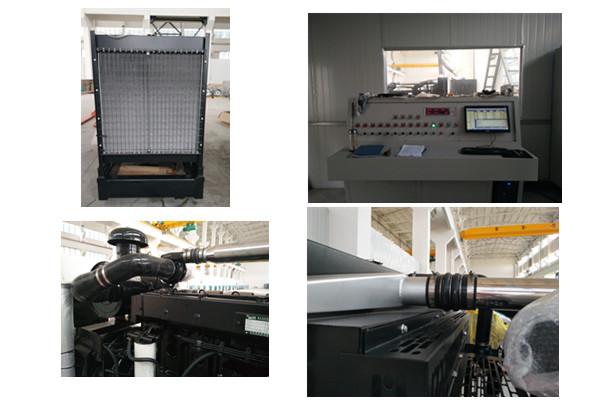

Factory Test Each our generating sets must be got through 1h load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch. All protective devices, control functions are simulated and its system checked, proved and then passed for dispatch. A test certificate can be provided upon request.
|
ENGINE SPECIFICATION
| Engine Model | KOFO WT 12D-308E |
| Engine Type | Water-cooled, 6 cylinders in line, direct injection |
| Maximum Output | 288 KW |
| Aspiration | Turbocharged |
| Bore x Stroke | 125*147 mm |
| Displacement | 14 L |
| Compression Ration | 16:1 |
| Fuel Consumption | 188 g/kw.h |
| Lube-oil Pan Capacity | 16.4 L |
| Cooling Water Capacity | 24 L |
| Voltage for Start | 24 V |
| Instrument for Adjusting Speed | Electronic |
| Noise Level (A) 7 m | ≤115 db (Open type), ≤75 db (Silent type) |
ALTERNATOR SPECIFICATION
| Alternator Model | Copy Stamford GPI4DC |
| Excitation | Brushless, self-excited |
| Insulation Class | H |
| Project Class | IP23 |
| Connection Type | Re-connectable |
| Voltage Regulation | ≥95%～105% |
| Waveform | ≤5%, sine wave |
| Distortion THF / TIF | THF<50, TIF<2% |
GENERATOR SET CONTROL PANEL
AC/DC control panel with communication interface
Emergency stop button

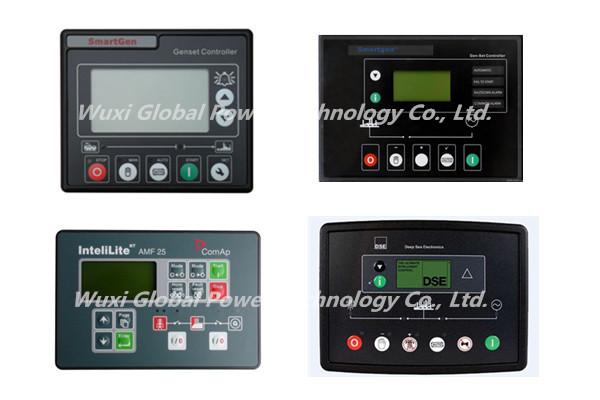

Controller with selection for auto-start, HGM6110 monitoring and with following (and not restricted to) features:
- Start / Stop button
- Hour run meter
- Monitor engine temperature and provides shutdown protection
- Monitor oil pressure and provides shutdown protection
- Alarm output for abnormal operation
Standard Features
Control System: HGM control panel with communication interface
