Water Cooled 3 Phase Perkins Diesel Generator 200KW 250KVA Marathon Alternator Diesel Generator
Price:
Negotiable
MOQ:
1
Delivery Time:
25 working days after received down-payment
Brand:
Global Power
Product Description

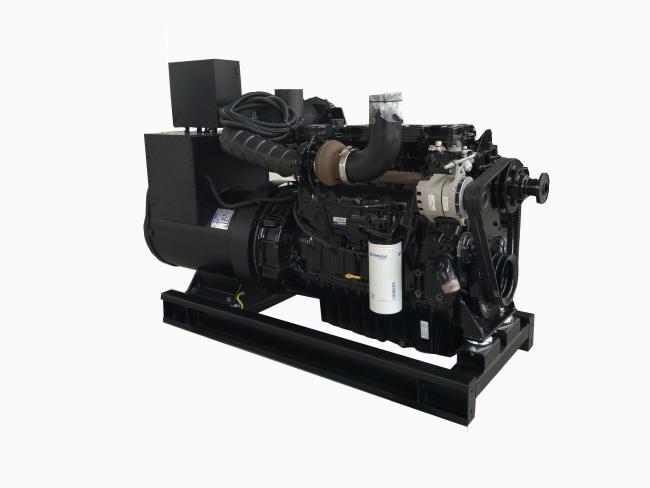

200KW/250KVA Perkins Diesel Generator, Water-cooled, three phase, Marathon Alternator Diesel Generator
Model: GPP200
Generator data
Diesel Generator GPP200 (three phase)
| Prime Power (kw/kva) | 200/250 |
| Standby Power (kw/kva) | 220/275 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 361 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2600*900*1570 |
| Open Type-Weight (kg) | 1950 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3400*1400*2150 |
| Soundproof Type-Weight (kg) | 4750 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |

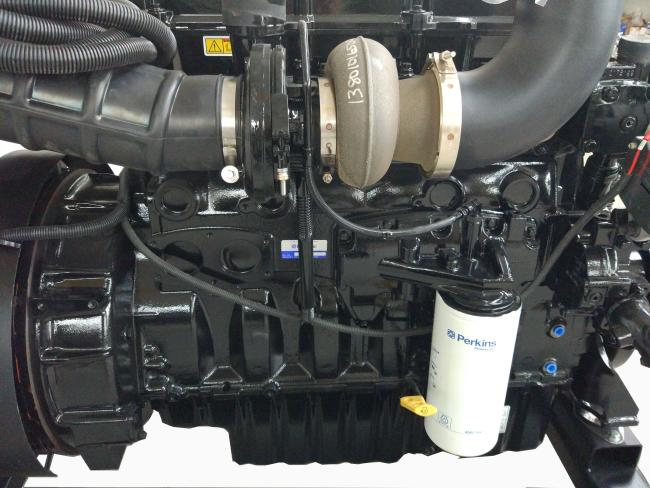

Engine specifications
Engine
Main features:
- Six-cylinder, water-cooled, in-line diesel engine
- Efficient fuel system for max power output and durability
- Large-capacity air cleaner
- Cost effective, fuel efficient and reliable performance
- Functional engine with compact structure
- Excellent after-sales service and sufficient spare parts supplying
- Easy installation and ready access for routine maintenance
Technical data
Model 1506A-E88TA
| Engine brand | Perkins |
| Output Power (kw) | 228 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.9:1 |
| Displacement (L) | 8.7 |
| Bore X Stroke (mm) | 116.6*135.9 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 37.2 |
| Fuel Consump. (g/kw·h) | 188 |
| Oil Capacity (L) | 26.5 |

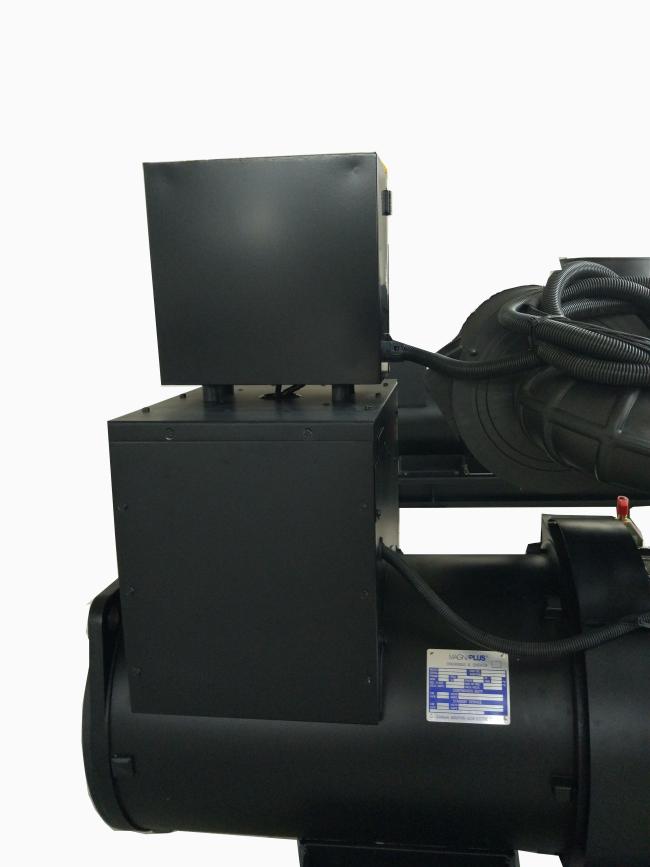

Alternator specifications
Alternator
Main features:
- Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
- 2/3 pitch winding as standard, to avoid excessive neutral currents
- Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP23 as standard
- Self-excited control system
- Resist of corruption of oil and acid
Technical data
Model MP-200-4
| Alternator brand | Marathon |
| Rated Power (kw) | 200 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
DSE4520 controller
Main features:
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
