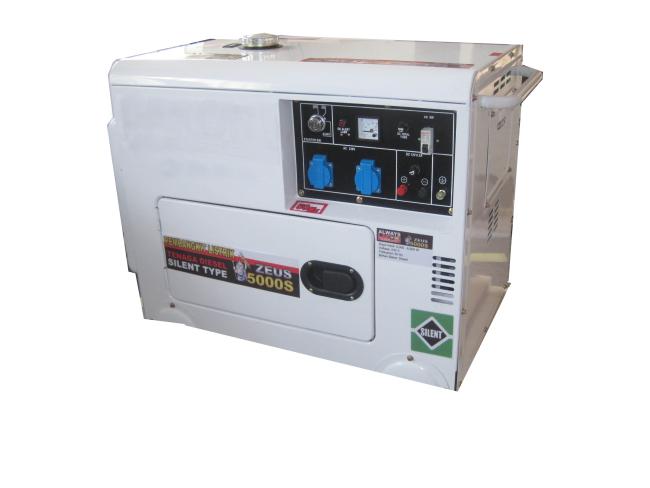

50Hz 7.5kva Silent Open Portable Diesel Generator 8.25kva Air Cooled Single Phase

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 25 working days after received down-payment
Brand: Global Power
Product Description

GP D8000T

Ratings

Model GP D8000T
Rated frequency Hz 50
Rated power KVA 7.45
Max. power KVA 8.25
Overall dimension mm 945*565*790
Weight Kg 165

Features and Benefits



1. Powerful Lees four-stroke engine

    Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.

2. Reliable and stable output

    Applied the improved AVR (automatic voltage regulator), which not only can smooth the output but also provide reasonable protection against the overload of the whole set

3. Competitive economic operation

    The high efficiency combustion system is designed to reduce the consumption and operation cost

4. Qualified breaker, electronic elements

    Ensuring high quality of generator, protect the generator from being overload

5. Compact design

    Provides unparalleled power to weight ratio

6. Large steel fuel tank

    For durability and extended running time

7. Cover plate

    Smart-designed cover plate effectively protects the electric elements inside

8. Fuel pump

    High quality and precise fuel pump, for stable running and longer useful time

9. DC Charging

    Charge the battery conveniently

10. Hardened steel tube cradle

    For added durability and strength, easy transport and compact storage

11. Copper alternator

    100% copper alternator ensures reliable and stable running

12. Fine craftwork

    Good painting and fine craftwork, use 1.7mm thickness steel ensuring high strength

13. Wheels optional

    For easily transport, now you can take the power wherever you need



Generator

Frequency(Hz) 50
Rated Output(kVA) 7.45
Max Output(kVA) 8.25
Voltage(V) 230
Current(A) 32.4
Configuration Single phase
Factor 0.8-1.0
Insulation Class B
Pole 2
Phase 1
Excitation Mode Self-excitation & constant voltage(AVR)
Panel type General panel
output socket 2pc single phase socket
Connection Pole Without
DC12V Output 12V 8.3A
Dimension (L *W*H) 945*565*790
Dry weight(kg) 165
Working assorting weight (Kg) 172
Noise level(7m)dB(A) 72
Frame type Silent frame



Engine

Model GP 192FE
Engine type Single cylinder,4-stroke,forced air-cooled
Displacement(mL) 498
Cylinder NO.-bore×stroke (mm) 1-92×75
Rated power(kW) 7.5
Rated rotation speed(r/min) 3000
Fuel consumption ( g/kW.h) 275
Capacity of Fuel Tank (L) 16
Starting System Electric starter
Compression ratio 19:1
