ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW 35KVA Mechanical Speed Governing
ISUZU 4JB1T Silent Diesel Generator Set 60HZ 28KW / 35KVA Mechanical Speed Governing
Technical Specifications :
| Prime Power (kw/kva) | 28/35 |
| Standby Power (kw/kva) | 31/38.5 |
| Rated Voltage (V) | 440/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 49 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1450*660*1000 |
| Open Type-Weight (kg) | 570 |
| Soundproof Type- Dimension (L*W*H) (mm) | 1900*720*1187 |
| Soundproof Type-Weight (kg) | 1470 |
| Fuel Tank Capacity(L) | 70 |
| Continuous Running Time(hr.) | 8 |
Model 4JB1T
| Engine brand | ISUZU |
| Output Power (kw) | 34 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 3.9 |
| Bore X Stroke (mm) | 102*120 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Mechanical |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 21 |
| Fuel Consump. (g/kw·h) | 214 |
| Oil Capacity (L) | 11 |
Model GPI 184G
| Alternator brand | Global Power |
| Rated Power (kw) | 30 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |

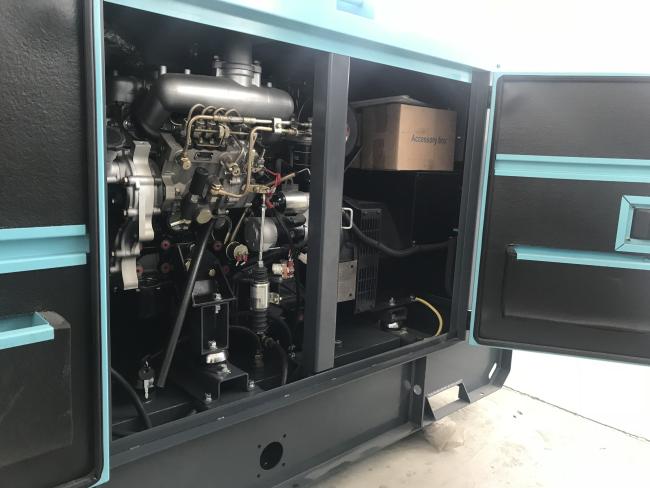

Our Picture :
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
