Xichai FAWDE 4DX23-65D 40KW 50KVA Diesel Genset For Home 400V 230V 50HZ 60HZ Brushless Alternator
Xichai FAWDE 4DX23-65D 40KW / 50KVA Diesel Genset For Home 400/230V 50HZ/60HZ Brushless Alternator
Product superiority:
- Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
- Low emission contamination
- Reliable power and tight compact structure
- Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
- Easy to install and maintain
- Full storage of accessories and more than 4000 service networks worldwide

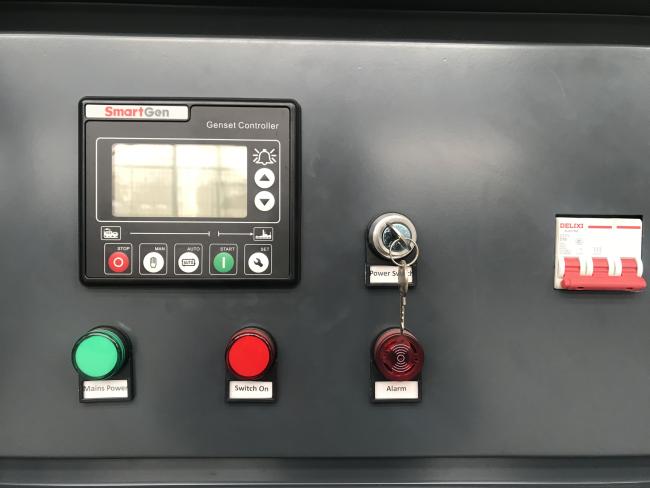

Control system
- Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
- Security password-protected programming levels
- All parameters use digital modulation, with higher reliability and stability
- Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
- Power supply range is wide, accommodating to different starting battery voltage environment
- Built-in watch dog can never be dead halt, ensuring smooth program execution
- Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Technical data
Model 4DX23-65D
| Engine brand | FAWDE |
| Output Power (kw) | 48 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Aspiration type | Turbocharged |
| Displacement (L) | 3.86 |
| Bore X Stroke (mm) | 102*118 |
| Engine Speed (r/min) | 1500 |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Lub. Consump (L/h) | 0.05 |
| Fuel Consump. (g/kw·h) | ≤215 |
| Oil Capacity (L) | 13 |
Model GPI 224D
| Alternator brand | Global Power |
| Rated Power (kw) | 40 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
