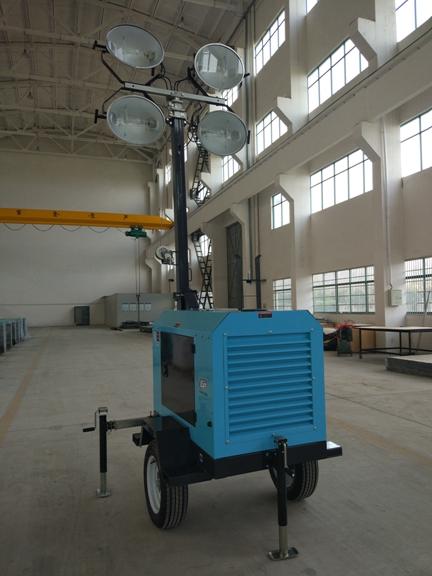

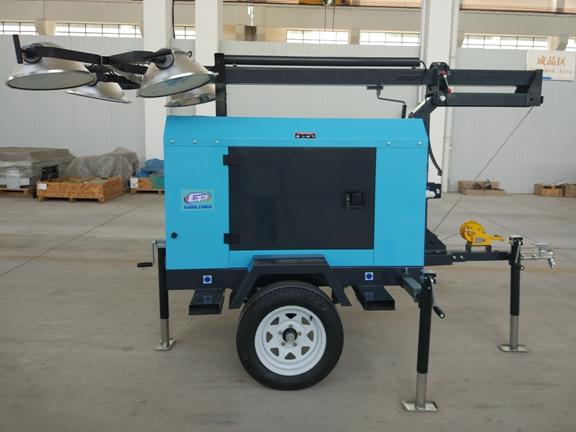

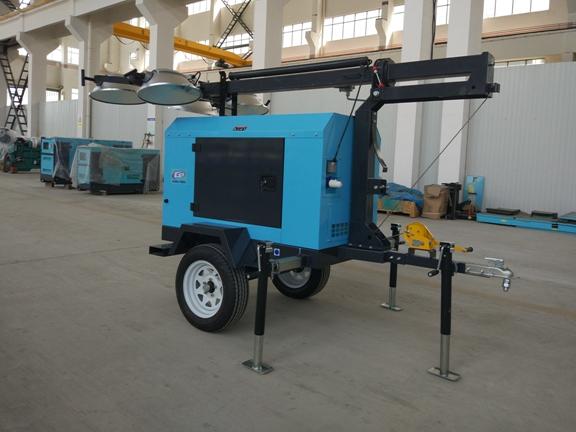

Contruction Emergency Portable 6-7kw 50Hz Mobile Light Tower , Trailer Mounted Light Towers
Price:
Negociable
MOQ:
3sets
Delivery Time:
20 days
Brand:
Global Power
Product Description
GPLTY-1000*4
Light Tower Diesel Power Generator Set Ratings
| Model | GPLTY-1000*4 | |
| Rated frequency | Hz | 50 |
| Rated power | KW | 6 |
| Max. power | KW | 7 |
| Working dimension | mm | 2990x1300x8000 |
| Weight | Kg | 800 |
Relied on its high reliability, maximum safety, easy operation and simple maintenance etc., light towers are suitable for varies applications like construction site, mining filed, rental business, public equipment service, accident handling, large-scale event, disaster relief etc.
| Engine | |
| Engine brand | |
| Engine model | LD380 |
| Speed | 1500/1800 rpm |
| Prime power | 12/14.4kw |
| Cooling system | Water-cooled |
| Oil capacity | 4.5L |
| Alternator | |
| Alternator brand | |
| Alternator model | LA130/4 |
| Continued power | 7/8kVA |
| Excitation mode | Capacity exciter |
| Alternator insulation | H |
| Protection grade | IP23 |
| Mast | |
| Mast type | Manual |
| Mast height | 8m |
| Section no. (extended) | 4 |
| Mast rotation | 359° |
| Mast extension time | 45s |
| Mast descend time | 30s |
| Lighting | |
| Type of ligths | Metal halide lamp |
| Number & Power of lights | 4x1000w |
| Mast lighting & Extension | Manual operation (Electric optional) |
| Light angle turning | Manual |
| Luminous flux | 4x110000=440000 |
| Illum area (5 Lux min) | 3900m² |
| Lamps rotation | 75°(automatic) |
| Protection glass | IP33 |
| Color temperature | 4200k |
| Trailer | |
| Manufacture | |
| Braking system | / |
| Hitch | Ball type / O ring optional |
| Tire number | 2 |
| Tire rim size | 165 / 14” |
| Speed | <80km/h |
Light tower standard and optional features:
Generator set:
- Soundproof diesel generator set
- Watertight digital panel, for control, protection managing
- 1 auxiliary power sockets
- 1 supply auxiliary entry
- External filling of the fuel tank
- Emergency stop
- Wide accesses for maintenance
- Lifting ring and forklift pockets
- Oil & Coolant drains for service ability
- Independent circuit breakers
- Engine block heaters (Optional)
- Spark arrestor (Optional)
- Ground connection (Optional)
Mast:
- Manual mast
- Manual winch
- Double safety block: mast height blocking & trailer blocking
- Electric mast (Optional)
- Electric winch (Optional)
Trailer:
- 4 heavy duty stabilizers with level bubble
- 2*165 / 14” tires
- Mudguard
- Transport kit
Lighting:
- 4*1000W metal halide lamps
- 4*350W LED lamps (Optional)
Benefits:
- Kubota / Lees / Perkins engines to provide reliable power and high performance.
- Standard design and personal modification ensure to offer the project at the fastest speed.
- Telescopic, mechanical, 4 stages mast up to 8 meters
- New unique high pressure aluminum lamps
- Heavy-duty winch design and integral forklift pockets.
- High frequency generator work without ballast, easy to maintain
- Hydraulic/Manual winch for extending and retracting mast.
- Separate steel doors, lockable, weather protected and powder-coated protection
- Individual breaker switch for each light assembly
- Auxiliary big fuel tank
- Safe and quick installation
