400kg/hr Dog Meat Dice Treat Forming Machine PLC Touch Screen
| Model | |
| Capacity | 300-400kg/hr |
| Material Hopper Size | 800 x 400 x 350mm |
| Material Hopper Volume | 90L |
| Mixer Tank Temperature | 0-70℃ |
| Mold Quantity |
75pcs, includes - Forming mold x 69pcs - Pressing mold x 3pcs - Demolding mold x 3pcs |
| Forming Mold size | 468 x 173mm |
| Effective mold size | 352 x 154mm |
| Power | 7kw |
| Weight | 1400kg |
| Dimension | 6200 x 4700 x 1600mm |
High Efficiency Dog Meat Dice Treat Forming Machine
Product Introduction
Dog Meat Dice Treat Forming Machine can be used for producing beef granules,meat dices,codfish cubes with different shapes and sizes by changing the molds. The raw materials are the mixture of meat paste and starch, flour etc.
Configuration
PLC: Simens
Motor: Simens
Touch screen: Simens
Main electronics: Simens or Schneider
Any parts may contact food are made by good quality stainless steel, food grade PU belt

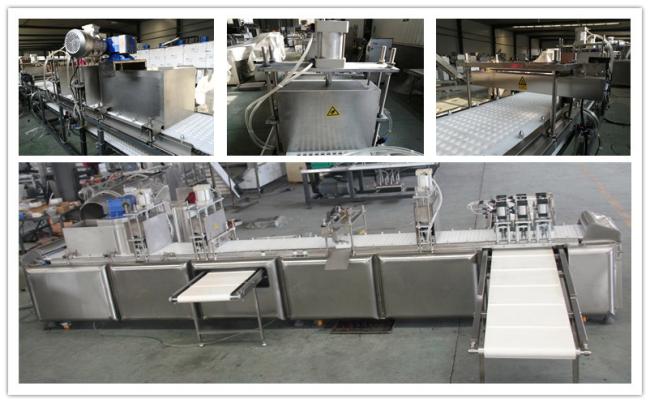

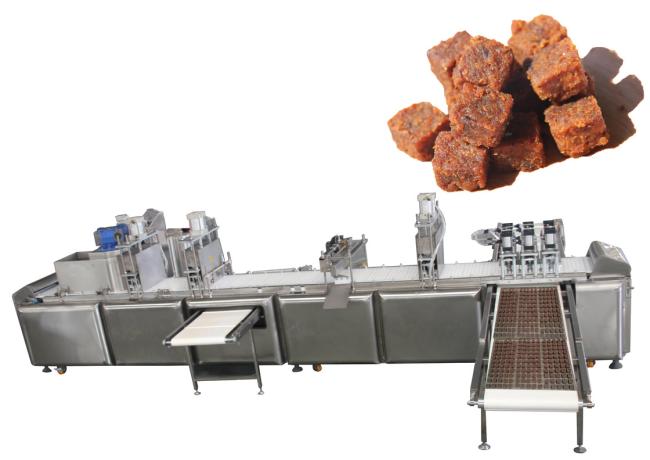

Dog meat dice machine picture
Sample picture of dog meat dice machine
Technicial parameter of dog meat dice machine
| Model | |
| Capacity | 300-400kg/hr |
| Material Hopper Size | 800 x 400 x 350mm |
| Material Hopper Volume | 90L |
| Mixer Tank Temperature | 0-70℃ |
| Mold Quantity |
75pcs, includes - Forming mold x 69pcs - Pressing mold x 3pcs - Demolding mold x 3pcs |
| Forming Mold size | 468 x 173mm |
| Effective mold size | 352 x 154mm |
| Power | 7kw |
| Weight | 1400kg |
| Dimension | 6200 x 4700 x 1600mm |

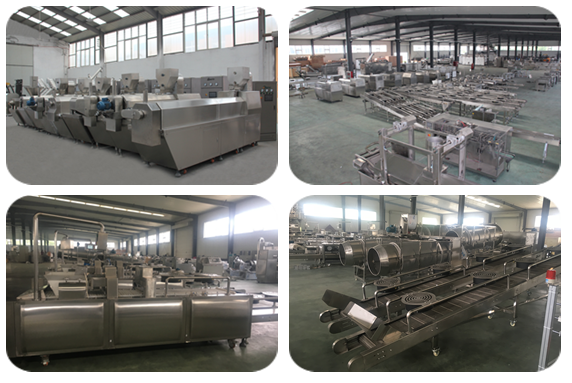

Our Factory
is a fast growing manufacturer for automatic food processing machine. The leading machine includes:
For human food
Cereal bar molding machine
Muesli bar cutting machine
Mini granola bar former
Corn flakes extruding line
Core filling snack extruding line
Nutrition powder extruding line
For Pet food
Pet food extruding line
Pet treat extruding line
Meat strip machine with auto tray system
Cold extrusion machine
Pet treat injection molding machine
Rawhide bone pressing machien
Mini lab extruder
After Sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply,
gas power, material storage, final storage, worker’s restroom, etc.
2. After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer’s detailed formula.
6. It normally costs 5-7 days for the commissioning service, and we supply 1 year guaranteefrom the date of completion of commissioning service.
