GRAIN SILO / TOWERS / CATWALKS Steel Silo Corrugated Side Panel Roll Forming Machine
Specification
Features
1. Large capacity
One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.
2. High accuracy
Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.
3. Less residues
External installable stiffeners contribute to less grain residues on silo walls.
4. Detachable and movable
With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.
Component
De coiler
Material width adjusting and guiding equipment
Roll former
Curving equipment
Cutting machine
Hydraulic control system
Technical process
Decoiling →Guiding→Cutting→Roll forming→Curving equipment
Technical parameter
| Suitable Raw Material | galvanized sheet, zinc aluminum sheet |
| Material’s Strength | 310MPa |
| Material’s Thickness | 1.2-4.5mm |
| Forming Stations | 18 |
| Max. Feeding Width | 1250mm |
| Diameter of Roller’s Shaft | 120mm |
| Producing Speed | 4-8m/min |
| Material of Roller | GCr15 quenching HRC 58-62° |
| Drive Mode | gearbox |
| Main Power | about 180KW |
| Electrical Control System | PLC frequency control |
| Power Supply | AC 440V & 50HZ & 3PH |
| Dimension(L*W*H) | 35m*4.5m*4.5m |
| Total Weight | approx 70T |

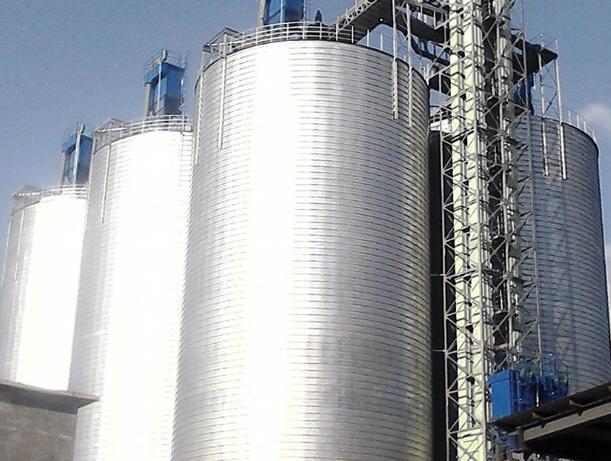

Silo pics
