Light Steel Roll Forming Machine for Modular Prefabricated Steel Frame House
Light Steel Roll Forming Machine for Modular Prefabricated Steel Frame House
Product Description
| NO. | Item | Model | Quantity |
| 1 | 89*41*10mm | 89*41*10mm | 1 |
| 2 | 140*41*10mm | 140*41*10mm | 1 |
| 3 | BD | BD | 1 |
|
Note: This production line can be put into one 40feet container. The price is based on FOB SHANGHAI. |
|||
Application:
Production Flow
Uncoiling → Sheet Guiding → Holes Punching → Roll Forming → Cutting → Products Receiving
Roll Forming Line’s Specification
| No. | Item | Specification | |||
| 1 | Powered Decoiler | ||||
| Loading weight | 3tons | ||||
| Coil Inner Diameter | 508mm | ||||
| Power | 1.5kw | ||||
| 2 | Roll Forming Machine | ||||
| Dimension | 5Mx1Mx1.8M | ||||
| Weight | 3500KGS | ||||
| Material of Rollers | Material: GCr15 | ||||
| Processing Technic for Rollers | CNC machining, heat treatment HRC58-60,then processed by CNC lathe, plating finally | ||||
| Material of Shafts | 40Cr | ||||
| Processing Technic for Shafts | CNC machining, quenching and tempering HRC28-32,then processed by CNC lathe, plating and polishing finally | ||||
| Sheet Guiding Device |  |
||||
|

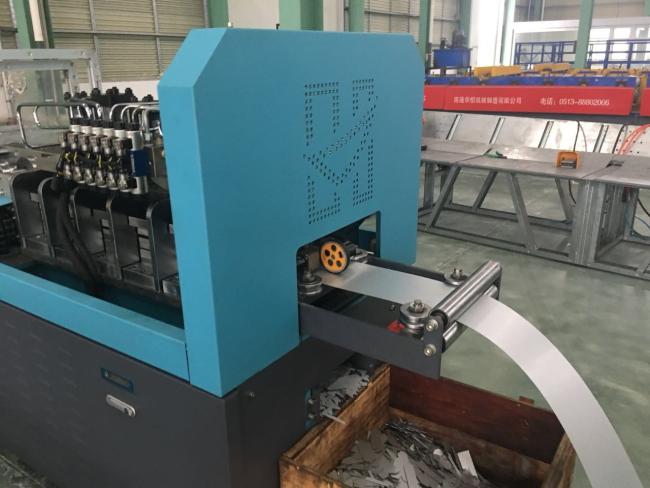

Holes Punching Device
|
(dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp) |
||||
| 3 | Control System | ||||
| Main control system | One Lenovo laptop and a control box inside of based frames of the machine | ||||
| Producing software | Special designed to match with the designing software Vertex | ||||
| Leaser Printing Device | USA Matthews Leaser Printing Device for painting spray logo and installation indicating number | ||||
| Remote-control device | Wireless remote-controller controls machine to go forward or backward or stop | ||||
| Brands of main components | PLC(self-developed),Relay (Schneider), proximity switch(Schneider), Encoder(Omron), Servo Motor(Xinjie) | ||||
| 4 | Servo System and Hydraulic System | ||||
| Servo motor | 5.5kw, taking with precision planetary gear reducer | ||||
| Hydraulic Station | 7.5KW;Hydraulic oil injection 200 litre | ||||
| 5 | Run-out Table | ||||
| Length | 3M | ||||
Training & Installation
1. We will dispatch technician to your facility for the installation and commissioning. The presence of your trainee is a must during our technician’s visit.
2. All the travelling, accommodation, local transport and food expenses, and allowance of our mechanical technician’s visit to your facility will be your responsibility.
3. Customer can dispatch his own engineer to supplier’s factory to learn how to use the software. Supplier affords two engineers’ accommodation for 10 days. Customer affords engineer’s round-trip tickets and visa cost.
