20M Long Reach Boom with 0.9m3 Bucket for Komatsu PC450LC-8 Excavator
20M Long Reach Boom with 0.9m3 Bucket for Komatsu PC450LC-8 Excavator
Features:
1.This Long reach boom is for PC450LC-8 Excavator, length is 20M with 2ton counterweight and 0.9m3 strengthen digging bucket.
2.Standard supply include:bucket, linkage, bucket cylinder, 4pcs steel pipes, 4pcs high-pressure hoses, 7pcs pins, lubricating system.
3.Q345B,Q690D steel material are optional to suit to your application.
4.Warranty: 6 months start from the goods arrived destination port.
5.All the edge plate are beveled by beveling machine before welding, which make the welding is more stronger,even and solid.
6.Big boom can be two sections because to make it fittable into container if long reach length exceed 24.5m.
7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
8.Boom cylinder and arm cylinder can also be supplied if customer want.
9.Extra pipeline can be added to suit to some extra application.
10.Applicable for all brand excavator.
11.This long reach boom was exported to Australia.
12.After-sales service with online support.
Certificate and Documents:
1.CE and ISO certificate are available.
2.Drawing and working range are available.
3.Pictures is available.
Packing and shipping:
1.We pack it by film at first, then secure it inside the container by fixing to the container wall through steel wire.
2.One container can load 3 complete sets(we use rack to hold the upper sets).
3.Production leadtime is 15 days for 1 set, 20 days for 3 sets.
Specifications:
| Boom length | 11000 mm |
| Arm length | 9000 mm |
| Max extensive scope | 19020 mm |
| Max dig depth | 13410 mm |
| Max dig height | 15170 mm |
| Max dig depth in vertical wall | 12520 mm |
| Max unloading height | 12920 mm |
| Min rotate radius | 7740 mm |
| Bucket volume | 0.9 m3 |
| Counter weight | 2.0 ton |
| Folding height | 3670mm |
Common Models:
| Model | LDB120 | LDB200 | LDB220 | LDB300 | LDB350 | LDB400 | LDB450 |
|
Total length (mm) |
13000 | 15380 | 15380 | 18000 | 20000 | 22000 | 24000 |
|
Weight (kg) |
3000 | 4000 | 4200 | 5200 | 6000 | 6500 | 7000 |
|
Max dig depth (mm) |
9000 | 11340 | 11370 | 13000 | 15000 | 16500 | 18000 |
|
Max extensive Scope (mm) |
12500 | 15100 | 15100 | 17600 | 19600 | 21600 | 23600 |
|
Max dig height (mm) |
11300 | 12510 | 12610 | 13720 | 14920 | 16100 | 17300 |
|
Folding height (mm) |
2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
|
Bucket volume (m3) |
0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
|
Excavator Tonnage(ton) |
12 | 20 | 22 | 30 | 35 | 40 | 45 |

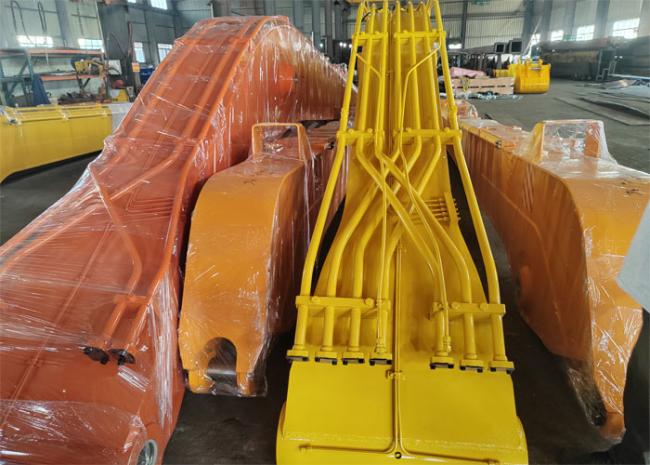

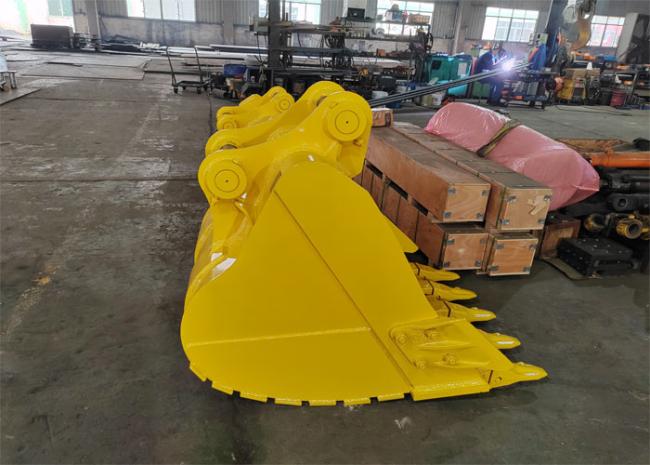

Pictures:
