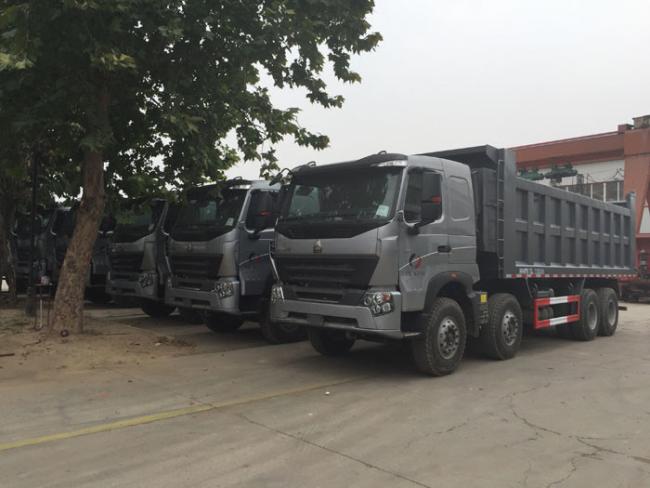

Tipper Dump Truck SINOTRUK HOWO A7 31 Tons For Construction ZZ3317N3567N1

Price Negotiable
Price: USD48000-USD52000/UNIT)negotiation
MOQ: 1 Unit
Delivery Time: 25 working days after received your advance payment
Brand: SINOTRUK HOWO A7
Product Description

Description:

This model is the mature product of SINOTRUK , with features of reliable structure , high loading capacity which can load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide acceplication.This model can  fullfiled the requirements of severe environment like construction site and mining area.which can satisfy  you of short distance transportation of mining rock and soil as well as engineering construction.





Specificatio

Tipper Dump Truck SINOTRUK HOWO A7 31 tons for Construction ZZ3317N3567N1

Model ZZ3317N3867N1
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 1800+3500+1350(mm)
Overall dimension 10360×2496×3450(mm)
Cargo body 7500×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15300(Kg)
Gross weight 31000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



For Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.



Competitive Advantage:



1)good cargo body structure,light weight,high rigidity,large loading capacity

2)adopt the high strength steel,it has long service life

3)Optimized the sealing structure has the better sealing effect.

4)The advanced hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.

Multiple box structures and device selections



China National Heavy Duty Truck Group Co. Ltd.
China National Heavy Duty Truck Group Co. Ltd.is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production base of the heavy-duty truck industry in China. It is famous for developing and manufacturing SINOTRUK HOWO tractor trucks, dump trucks, fuel tanker trucks and concrete mixer truck, water spraying trucks etc.
