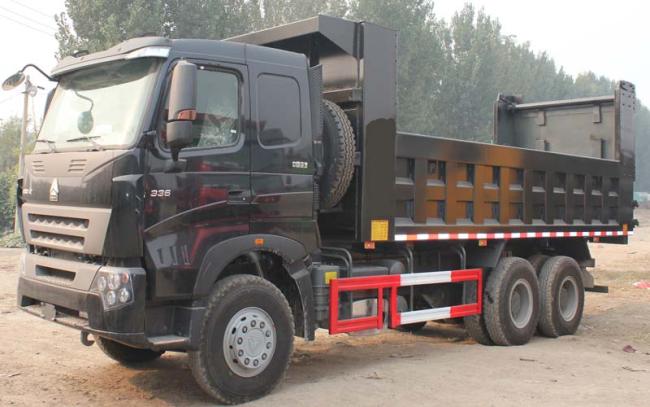

Tipper Dump Truck SINOTRUK HOWO A7 420HP 6X4 10 wheels 25 tons
Description:
This product , witch have the characteristics of reanable structure , high loading capacity which can load 30-60tons,strong power of 420HP,reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specification:
|
||||
| Model | ZZ3257V3847N1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||

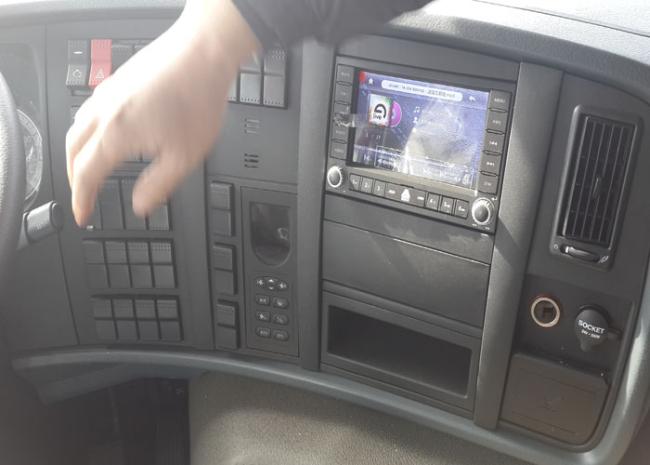

| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
Suit for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1)reasonable cargo body structure , light weight , high rigidity , hight loading capacity
2)adopt the high strength steel,it has long service life
3)The perfect hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)Multiple box structures and device selections
5)the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.
