1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR
HD 1080P 4 Channel Mobile DVR 3G 4G Wifi H.265 Recording System
SPECIFICATION
● Support 4-way 1080P HD Video and 4-way audio
● Support HDD and SD backup
● Support WIFI, WIFI AP, 3G, 4G;
● Through the preset interface, the acceleration sensor, temperature sensor, oil quantity, control panel, LED screen and other peripheral devices can be connected;
● Support IP voice intercom;
● H.264/H.265 encoding and compression
●Specific shock insulation and absorption technology for HDD protection
● Insert harddisk into DVR directly, no need HDD box
PARAMETER
| Item | parameters | |
| Audio and Video Inputs | video input |
AHD:4ch 1080/25fps IPC:Scalable 1-4ch |
| audio input | 4ch audio input | |
| Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) |
| speech output | 1ch audio output | |
| Audio and video parameter coding | video coding | H.264 Main Profile/H.265 |
| Resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726,G.711A optional | |
| storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk |
| SD | Support 1 SD card | |
| wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | 2.4/5.8G optional | |
| locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization |
| interface | USB | USB2.0 interface, support export data, external engineering treasure |
| serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | |
| I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | |
| network interface | Support external IPC, support hybrid NVR function | |
| · Intercom | 1 special intercom handheld mark interface | |
| Physical Specifications | size | 176.9mm(L)*186.8mm(W)*54mm(H) |
| weight |
NW:1.4kg GW:2kg(M51Hv-DGNE1-L as a standard) |
|
| work environment | operating temperature | -20〜+70℃ |
| operating humidity | 8%〜90%(No condensation) | |
|
Other
|
operator schema | remote control,APP,WEB |
| · Gravity sensor | Built-in G-Sensor | |
| Configurable AI algorithms | Face recognition ,People Counting,ADAS+DMS | |

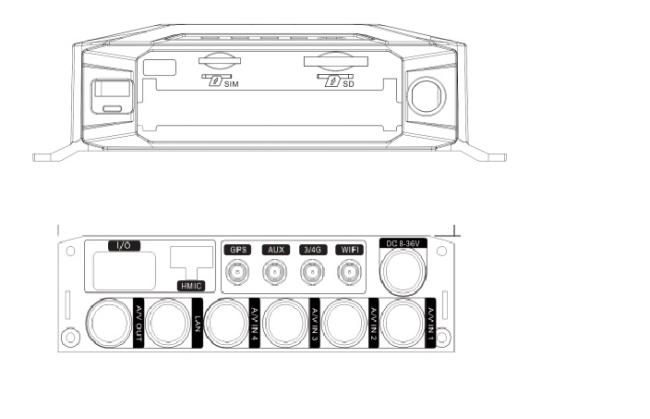

PRODUCT SIZE
APPLICATION

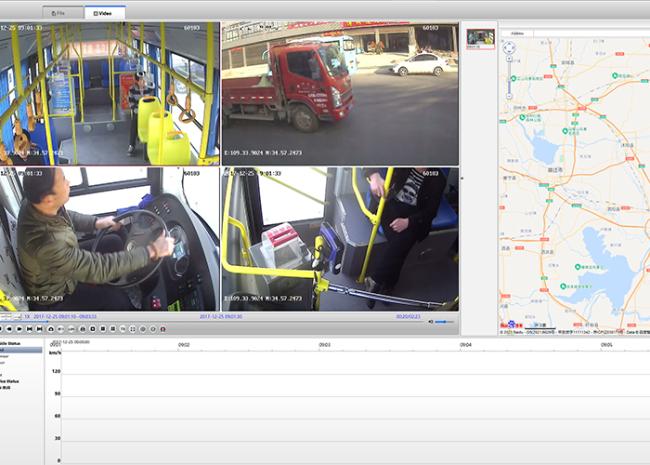

VIDEO STREAMING
