AHD Car Reversing Camera Ultra Wide Angle Night Vision Truck Side View Blind Spot Waterproof
1080P AHD Car Reversing Camera Ultra Wide Angle 180 Degree Sony Starlight Night Vision Truck Side View Blind Spot Waterproof Monitor
This car camera is our hot-selling model ,highly recommended for its wide angle, mini size and stable quality by customers.
The PCB board is customize, and with good Sony/CMOS to ensure nice and stable quality, the waterproof is IP69K for camera to stay durable useage ,6 IR LED to ensure best night vision,up to 150° wide view, perfect for cars like truck van,lorry, harvesting machine for side/central roof rearview.
★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability
★ Side view camera which with mirror arm mount bracket and without drilling installation, commonly use in school bus,van, harvester, excavator etc
Truck Reversing Camera Specification:
| Waterproof | IP69K | Voltage | DC 12v(24V optional) |
| View Angle | 120/150/170 Degree | Consumption | 120mA |
| Resolution | 600TV line | Certification | CE |
| (1000TVL,720P,960P, 1080P optional) | |||
| Image Sensor | 1/3" CMOS/1/2.9" CMOS | Warranty | 24 months |
| Item Name | car mini camera | Effective pixel | 1280 x 720,1280(H)*960(V),1920(H)*1080(V) |
| Minimum Lumination | 0.1 Lux (6 led light) | Day/Night mode | Color to Blackwhite switch automatically |
| Lens | 1.78mm/1.98mm | Operating Temperature | -30 |
| S/N | >48dB | White Balance | Auto |
| System | PAL /NTSC | Night vision | support |
| suitable | side/ roof camera | Guildline | On/Off |
| Image | Mirror /Normal seclectable | Shockproof | 4G |
| LUX | 0.1(6 Led) | Frenquency | 50Hz/60Hz |
| Video Output: | 1.0vp-p,75Ohm | Grama | 0.45 |
Reminder Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.

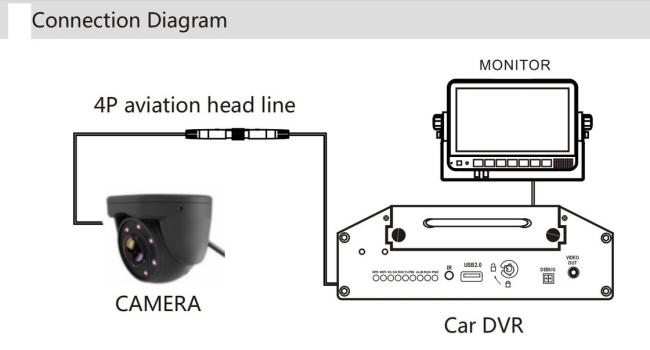

How to connect the Car Camera?
Application Scenarios Of Reverse Camera:
Reverse Rearview Camera MQA:
What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
